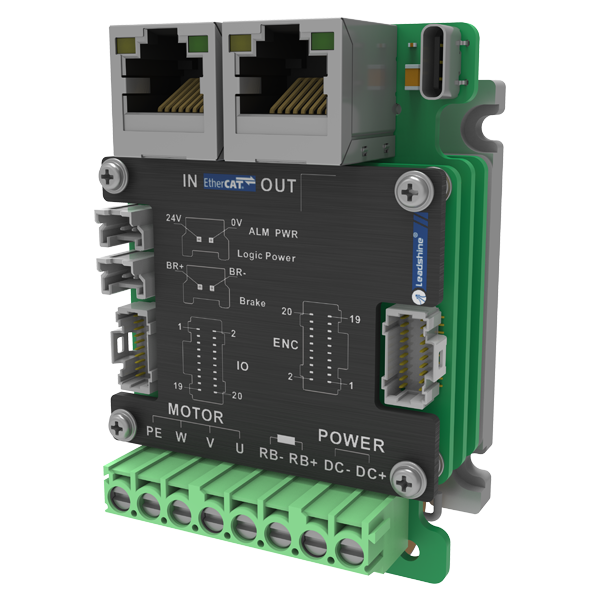

ELD3-EC7010BM
Product Category

ELD3-EC7010BM

  • Space saving palm sized EtherCAT drives

  • Full closed loop function with 2nd encoder

  • Supports various encoders such as ABZ, Tamagawa, BISS-C. Including hall sensors

  • Safety features integrated. STO, Logic Power , Brake Output

  • USB Type-C Tuning Port

  • 6 digital inputs, 3 digital outputs and 2 analog inputs

  • Easy tuning functions

  • Can be matched with many types of motors

List Price: $ 199.00
Online Special Price: $ 199.00

ELD3 Series Mini DC Servo Drive is the latest DC servo drive launched to an ever progressively improving Leadshine DC servo drive product lines. A whole new line of servo products featuring compact full functional smaller drive than the size of the palm with power ratings ranging from 50W up to 750W.



ELD3 Series supports EtherCAT communication protocol with many others to be released soon. The series come with Safe Torque Off, Logic Power Circuit, Brake Output, Full Closed Loop Control among many other servo functions that are not available on previous generation drives.


Technical Data
ModelELD3-EC7010BM
Input Voltage24-70VDC
Rated Power   (W)400
Rated Current (Arms)10
Peak Current (Arms)25
Command SourceEtherCAT
# of Inputs6
# of Outputs3

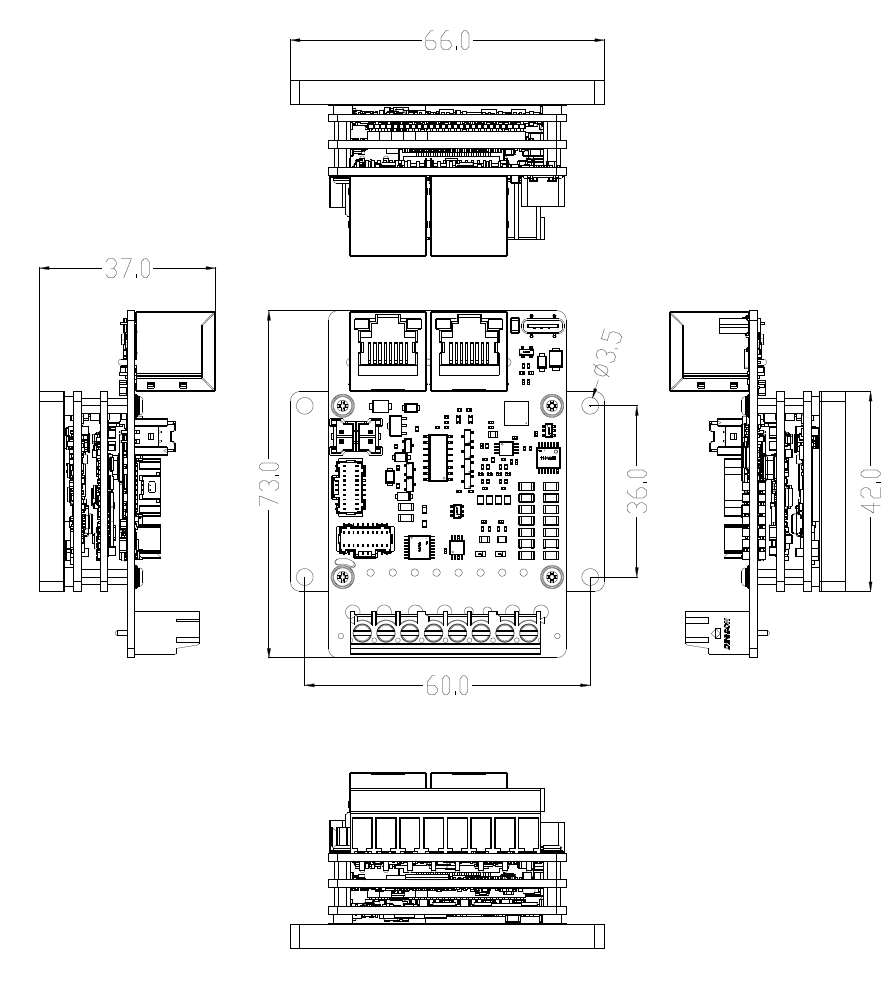

Mechanical

ELD3-mechanical
