Rated voltage 48V, rated power 200W

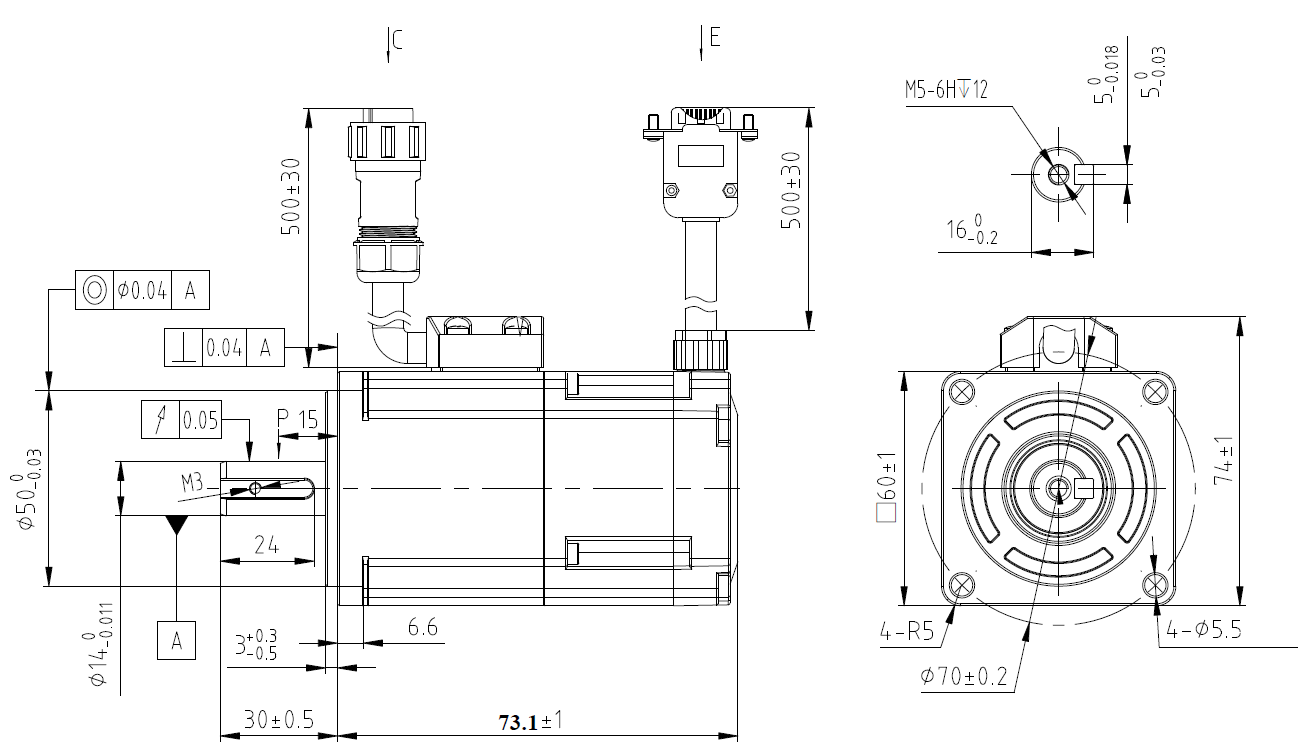

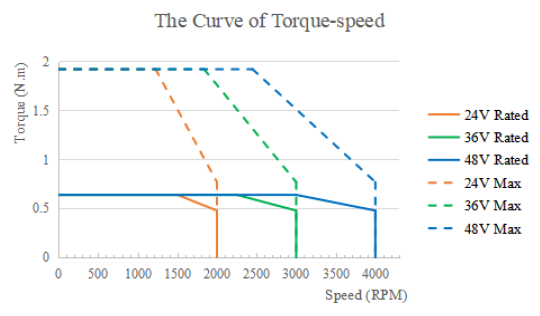

Frame 60mm, rated torque 0.64Nﾷm, rated speed 3000r/min
No brake
Insulation class: Class F
2500 ppr single-turn incremental optical encoder
IP65

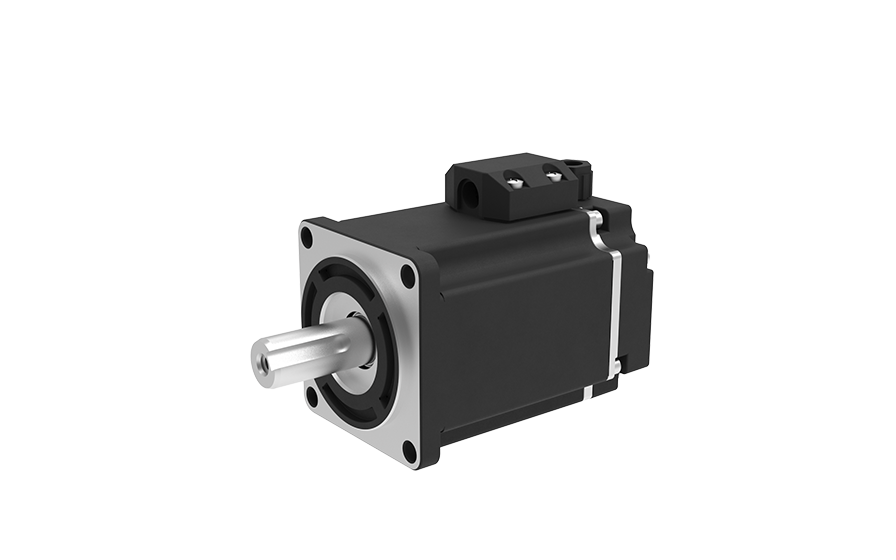

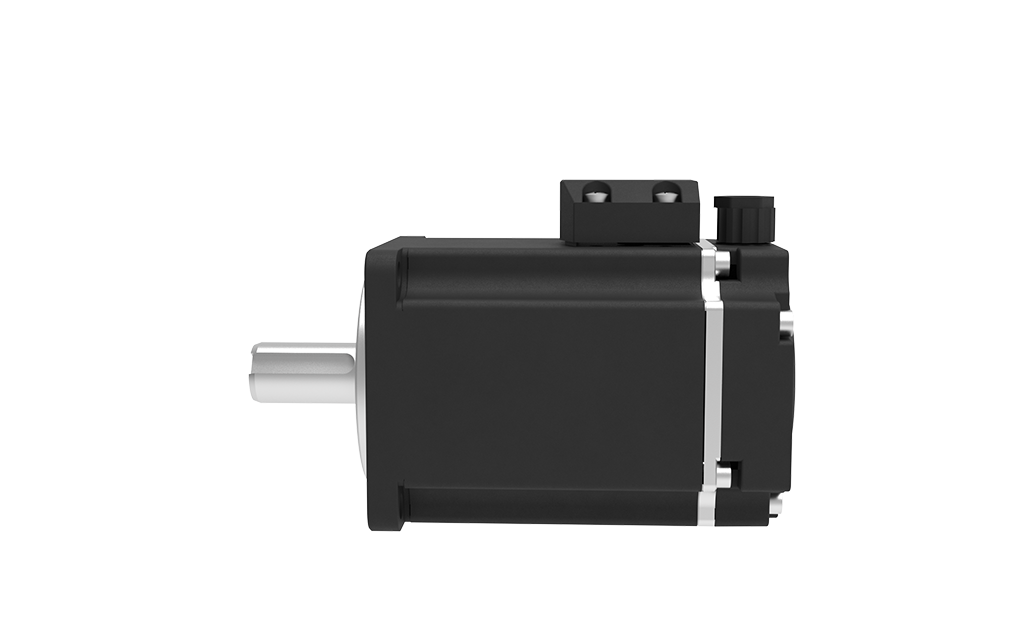

The ELVM series is a new low voltage servo motor series designed by Leadshine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 2000W, with 2500ppr incremental encoder or 17-bit absolute encoder.
