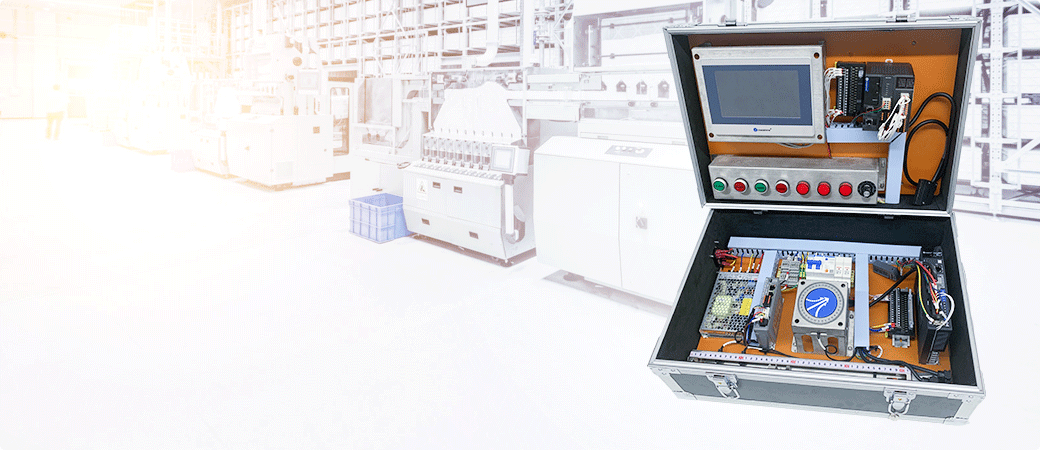

Leadshine Training Kit is created to help  customers from all over the world to have a better understanding of the product range and functionalities offered by Leadshine. The kit consists of motion control PLC, HMI, stepper axis, servo axis and necessary electrical & safety components all mounted on a wheeled case for easy carry.


Training Kit Item List

Model

Description

Quantity(pcs)

LT2070E

7-inch HMI

1

MC508CS

PLC with 32   channels IO

1

EL7-EC400N/

EL7-RS400P

400W EtherCAT/Modbus RTU/Pulse/Analog AC Servo Drive

1

ELM1H-0100MA40F

100W Servo Motor with 23-bit absolute encoder

1

CS3E-D503B/

CS1-D503S

EtherCAT/Pulse Control Closed Loop Stepper Drive

1

42CME04

NEMA17 Closed Loop Stepper Motor

1

LRS-150-24

24V Switching Power Supply

1

RT18-32

AC Cylindrical Fuse

2

NXBLE-32

Circuit Breaker

1


16-points Terminal Block

2


Power ON/OFF switch

1


Self-configurable switch

4


Self-configurable LED indicator

3


Analog Dial Switch

1


Limit Switch

3


Rotary Platform with Scale

1


Linear Module with Scale

1


Solder-free DB44/DB15 Connector

1


1-meter Ethernet Cable

2


1.5-meter Ethernet Cable

1


USB Type-C Tuning Cable

1


Power Cable (For servo drive)

1


Power Cable (For stepper drive)

1


Encoder Cable (For Servo drive)

1


Encoder Cable (For Stepper Drive)

1


Battery Kit for absolute Encoder

1


Wheeled Case

1

Stepper Drive and Servo Drive can be swapped for different learning lessons.
