● Extra-low motor noise offers excellent quietness
● Supply voltage up to 80 VDC
● Output current programmable, from 0.5A to 7.0A
● Analog signal (0-5V) for speed control
● Step & direction control signals also acceptable
● Internal step generator for no motion controller system

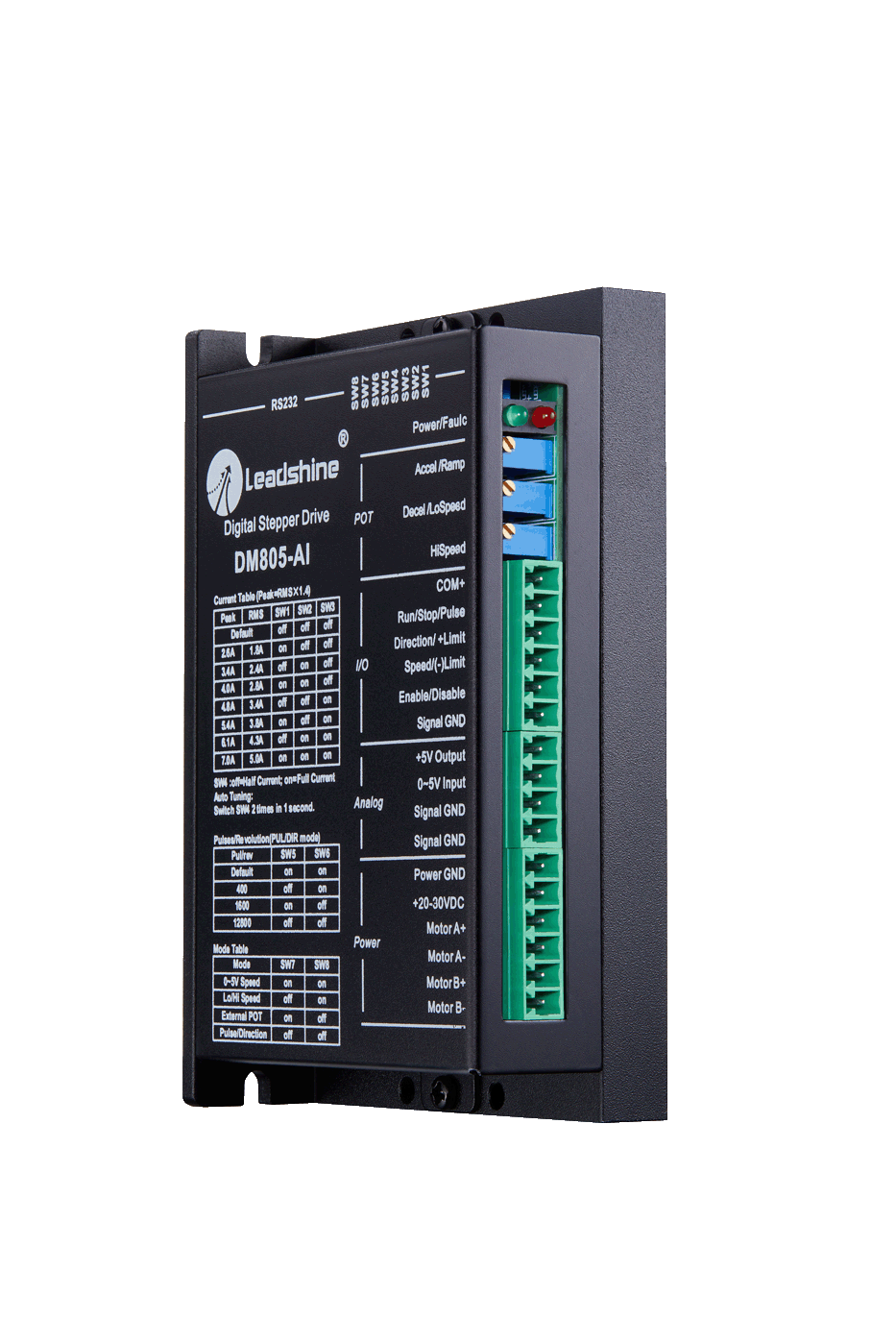

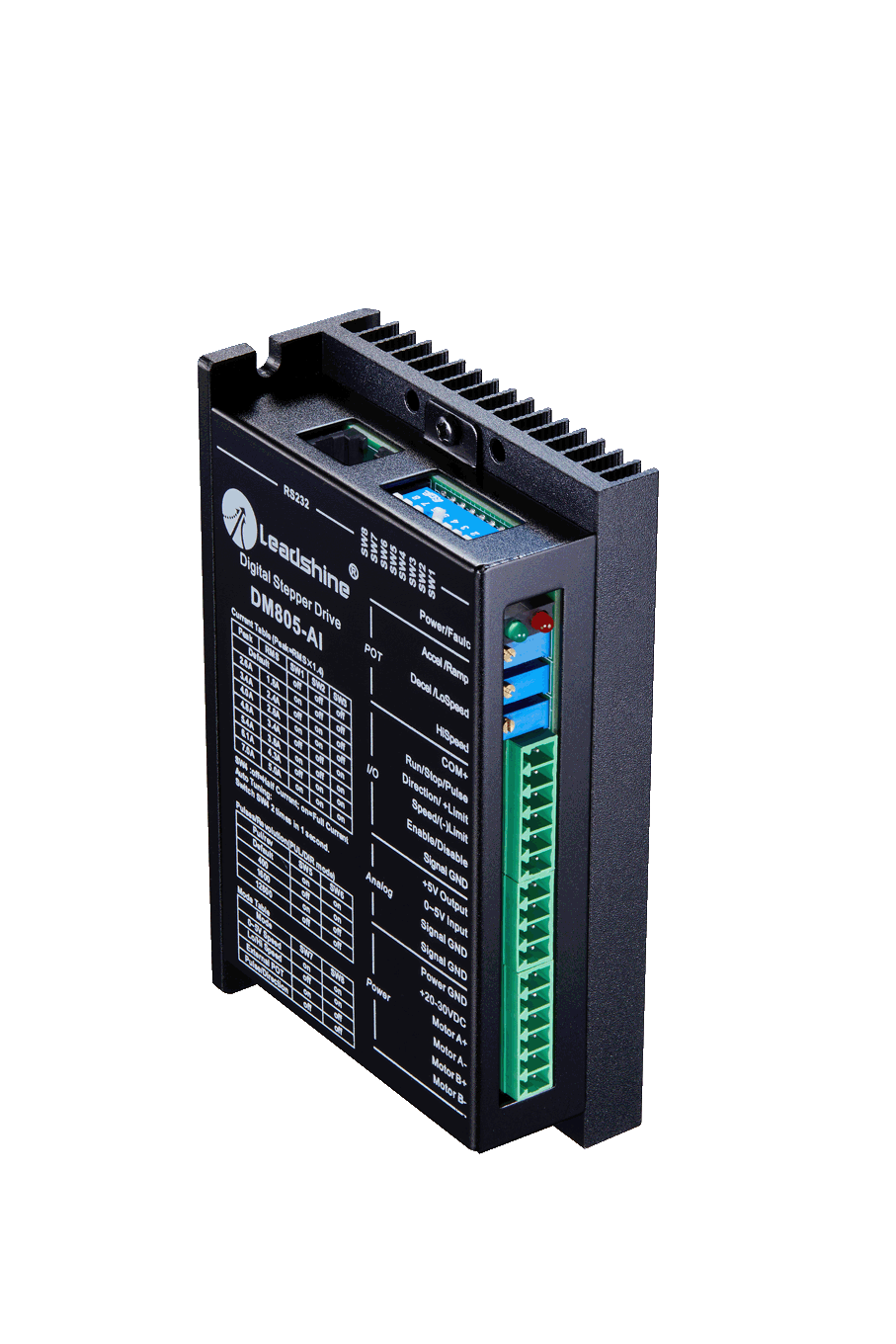

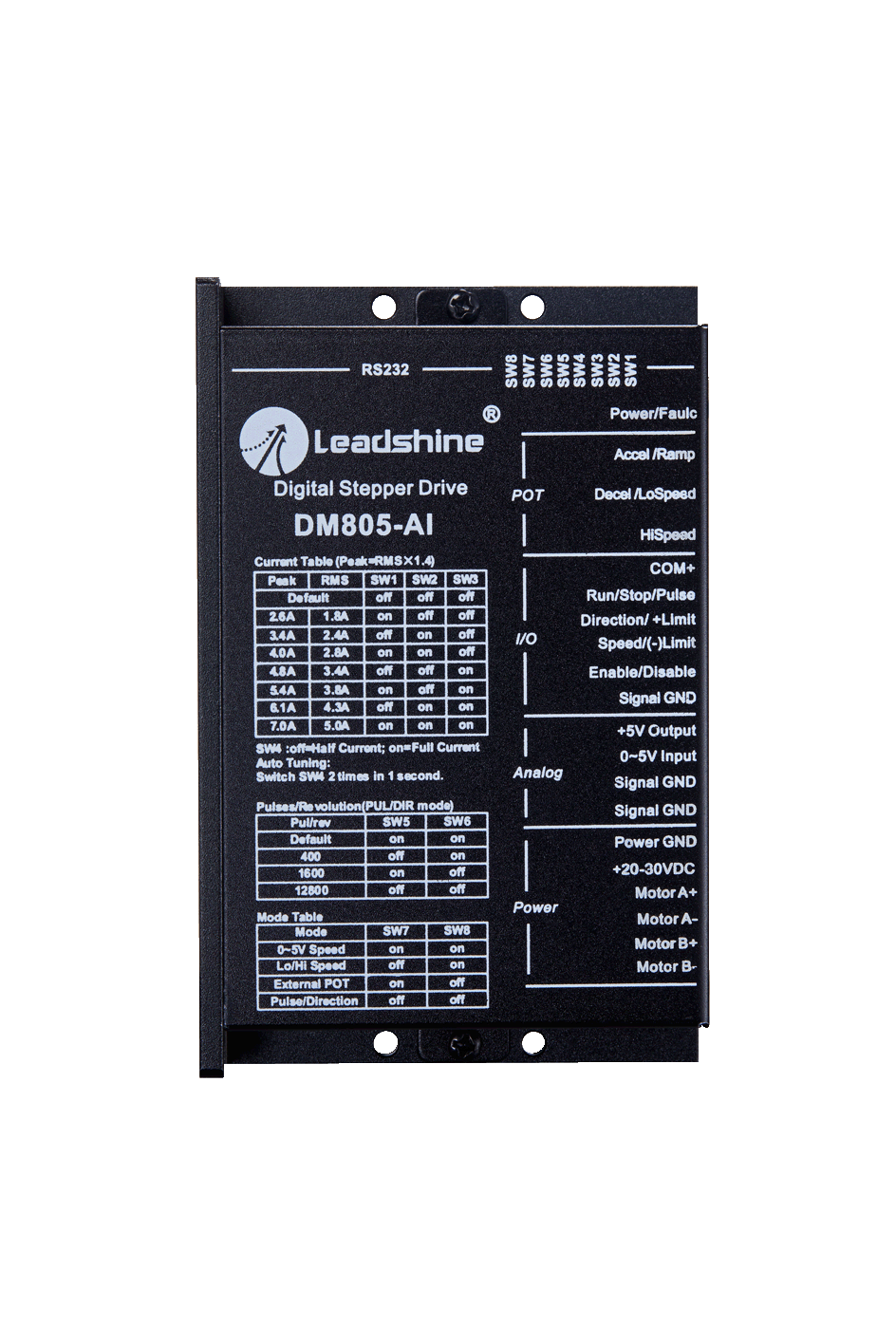

The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.
