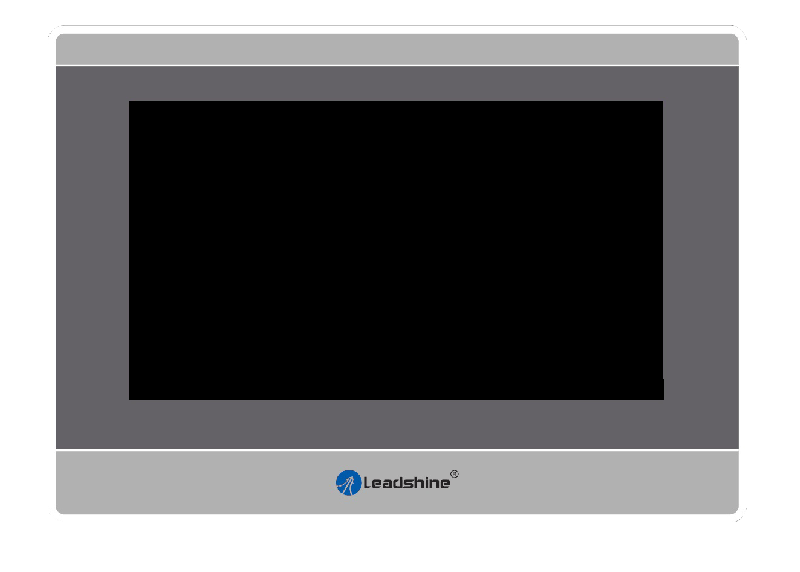

LT2070E

High resolution, high brightness, high-quality image display
Professional level appearance design creates a high aesthetic value
Practical downward wiring method is convenient for quick installation and wiring
Rich library resources, powerful programming functions, create operation interface easily
Using industrial ABS plastic casing, low cost, high reliability, and high cost-effectiveness
Support USB data storage and download

Model	LT2070E
Display Screen	7" 16:9 TFT LCD
Resolution	1024×600
Display Color	24Bit
Brightness	350 cd/m²
Backlight	LED
LCD Lifetime	50000 Hours
Touch Screen	4-Wire Industrial Resistive Touch Screen
CPU	LT2070E: 600MHz ARM Cortex-A8
Flash	LT2070E: 128M Flash + 128M DDR3
RTC	Configured RTC
Ethernet	1*10M / 100M Self-Adaption
SD CARD	Configured SD Card
USB PORT	1USB Slave 2.0 port; 1USB Host 2.0 port
Program Download Method	USB Slave/ USB Flash drive/ Ethernet
Serial Communication Port	COM1: RS232/RS485/RS422 COM2: RS485 COM3:RS232
LCD Viewing Angle（T/B/L/R）	85'/85'/85'/85'
Rated Power	< 10W
Rated Voltage	DC24V，Range DC 9V~28V
Power Protection	Lightning surge protection
Power-Off Time	< 5ms
CE & RoHS	EN61000-6-2:2005, EN61000-6-4:2007 Lightning Surge±1KV, Group-Pulse±2KV Contact Discharge 4KV, Air Discharge 8KV
Operating Temperature	0~50℃
Storage Temperature	-20~60℃
UV Protection	Do Not Expose The HMITo Environments With Strong UV (Such As Outdoors With Direct Sunlight) For A Long Time
Operating Humidity	10~90%RH (Without Condensation)
Vibration Resistance	10~25Hz (X、Y、Z Direction 2G/30 minutes)
Cooling Method	Air Cooling
IP	IP65 For Front Panel And IP20 For Rear Cover
Mechanical Structure	ABS

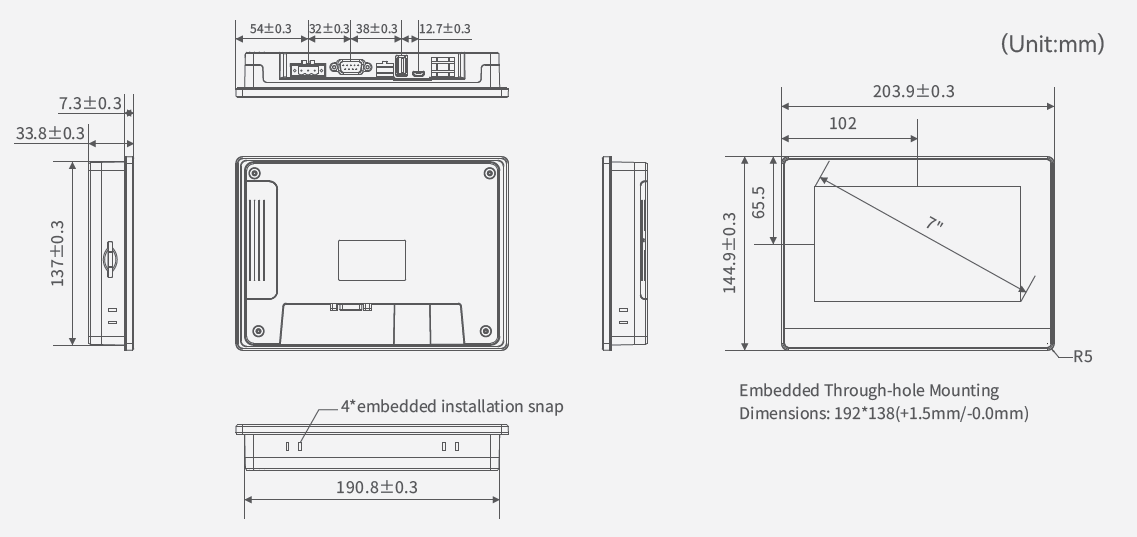

Cut-Out Mounting	192mm×138mm
Overall Dimensions	204mm×145mm×33.8mm
Weight	560g
