Rated voltage 400VAC, rated power 1000W

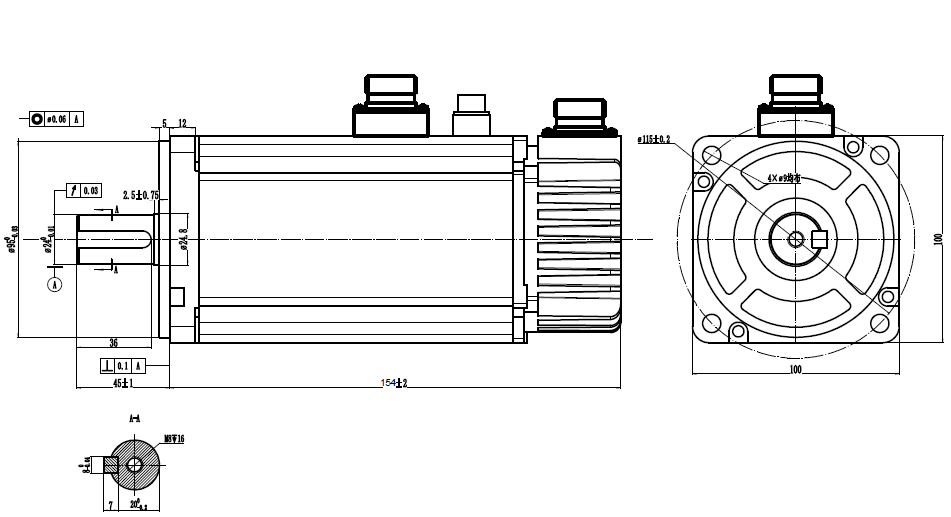

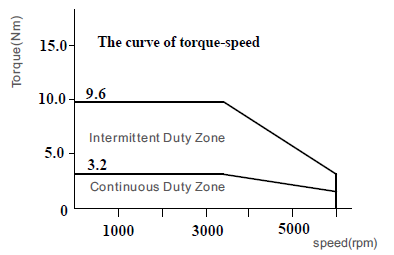

Frame 100mm, rated torque 3.2N·m, rated speed 3000r/min
23-bit optical encoder
No brake, aviation connector
Strong overload capacity
IP65

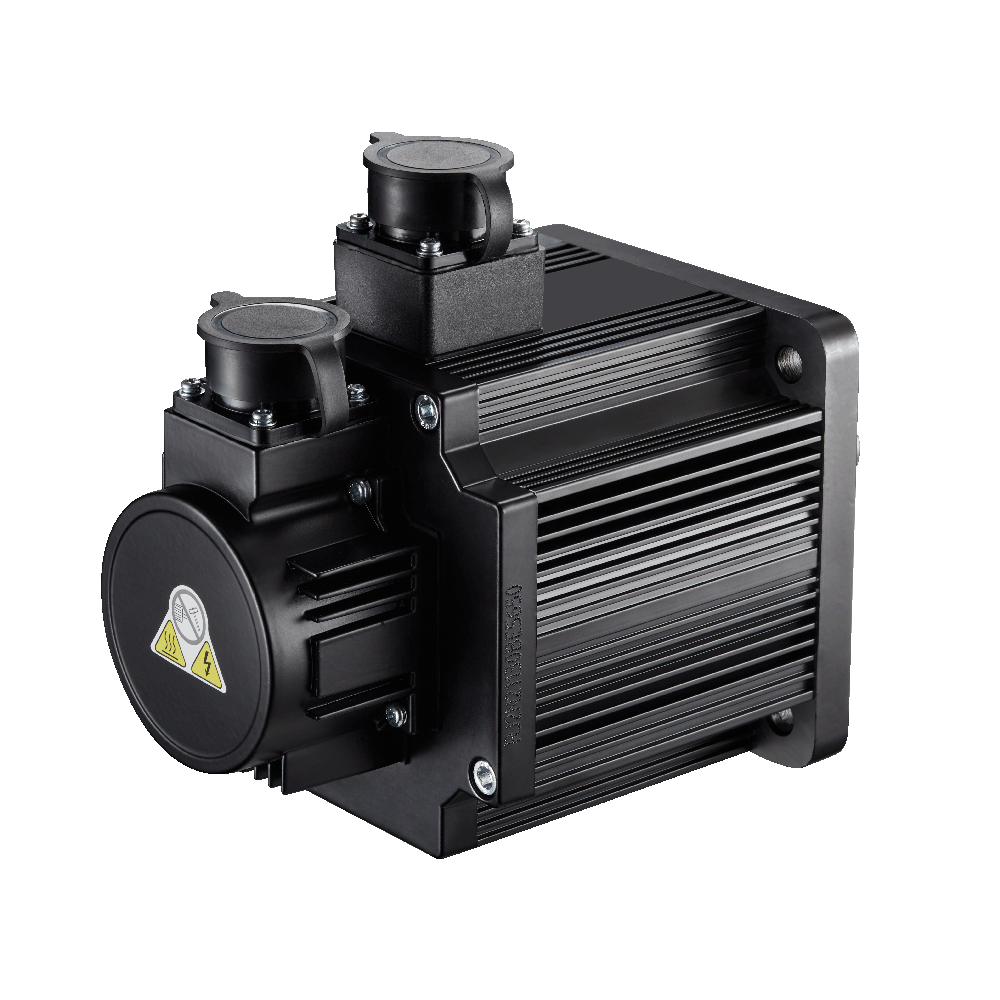

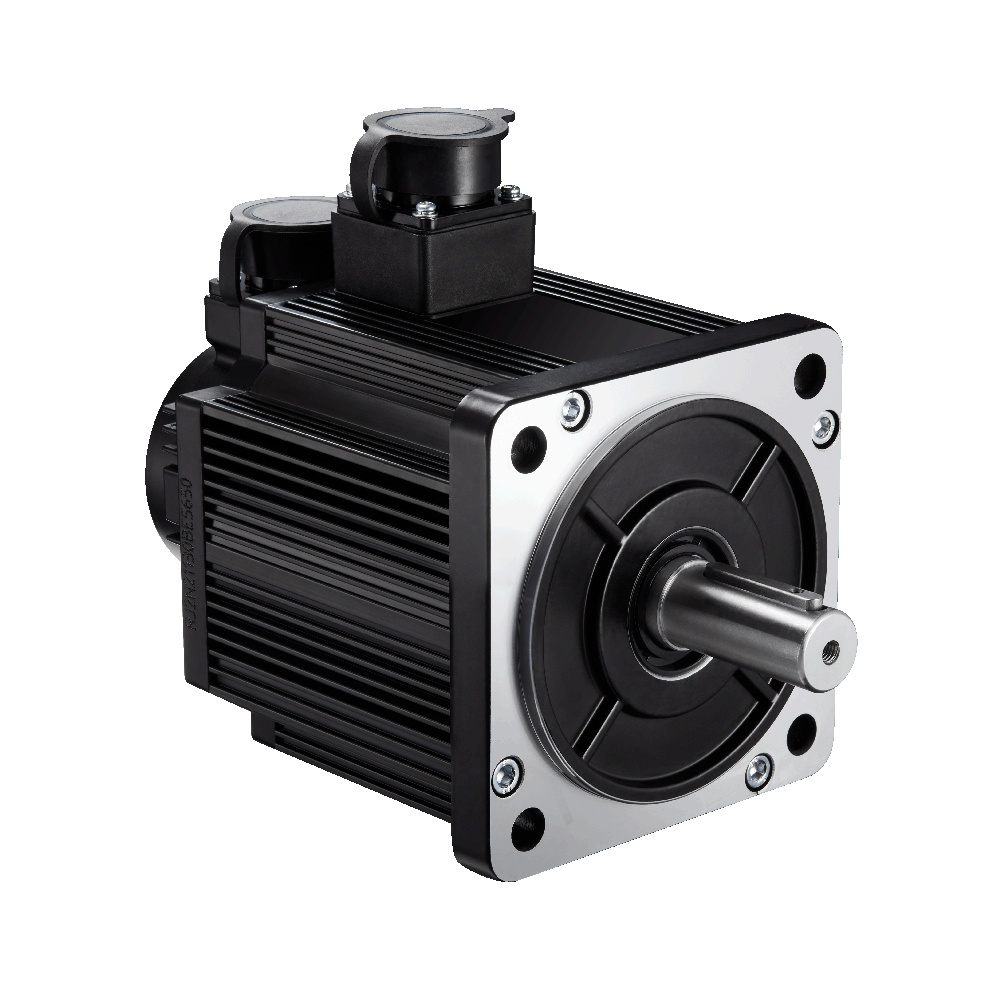

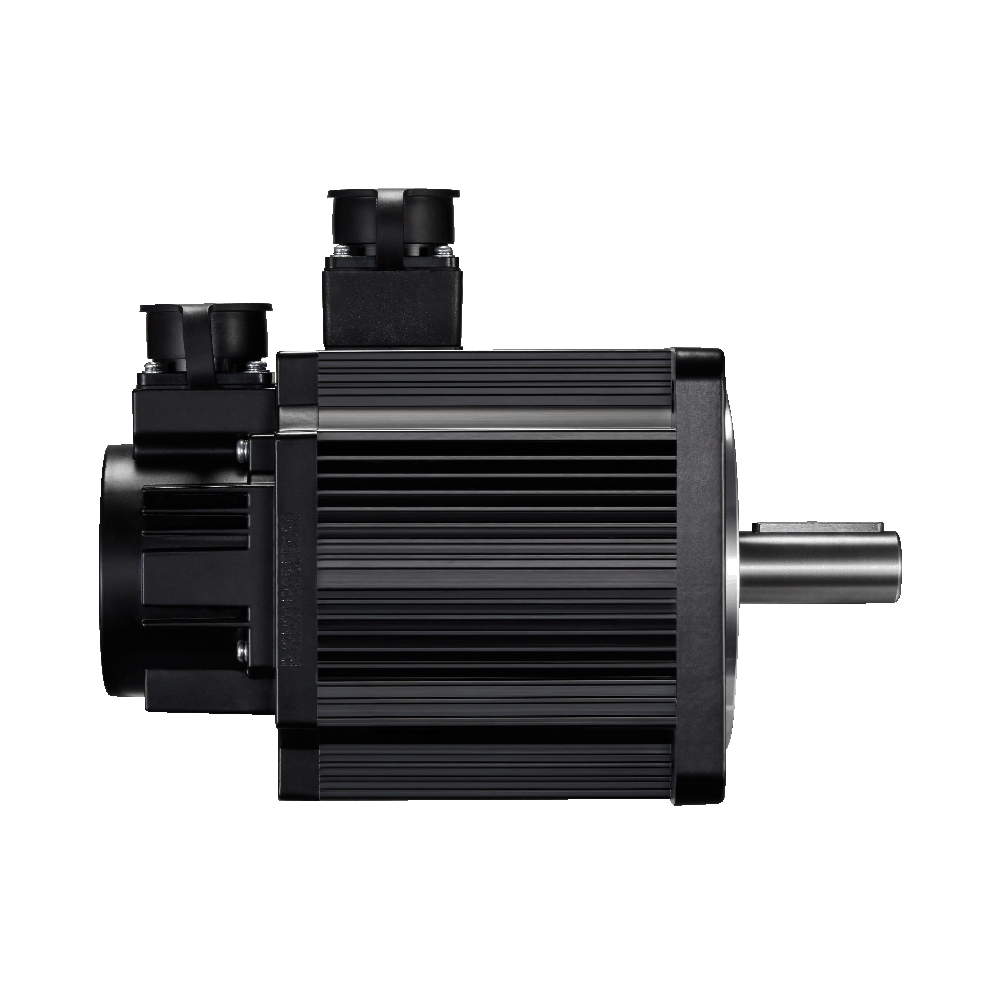

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 1000W to 2500W.
