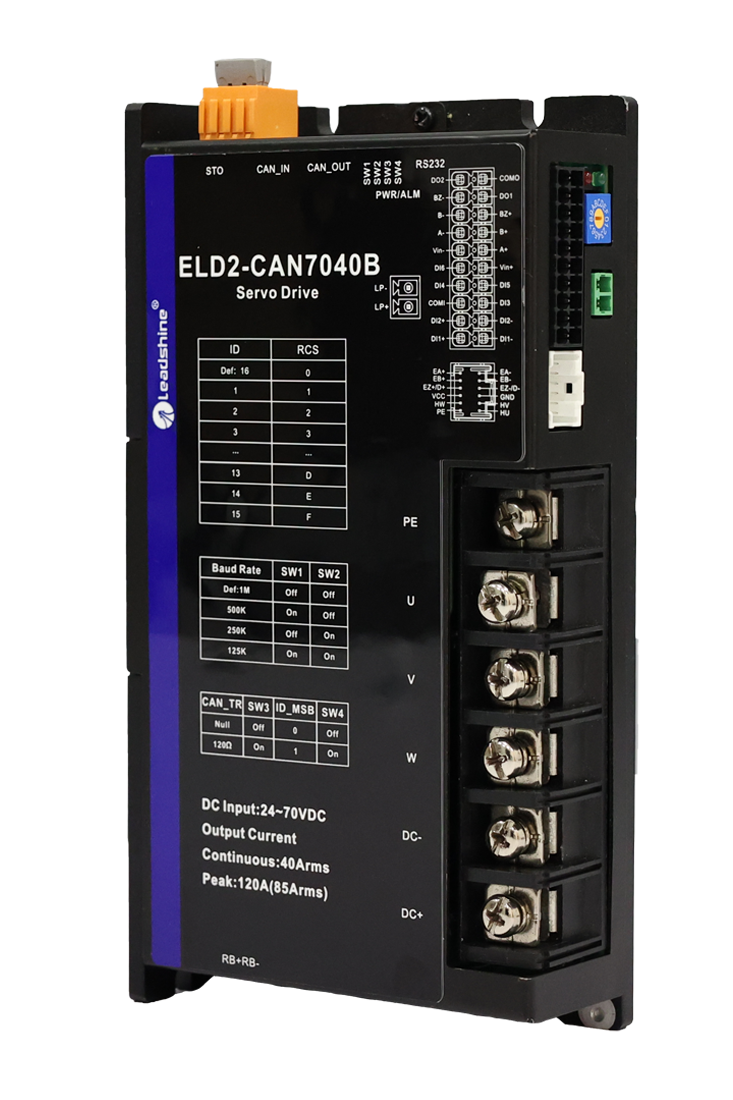

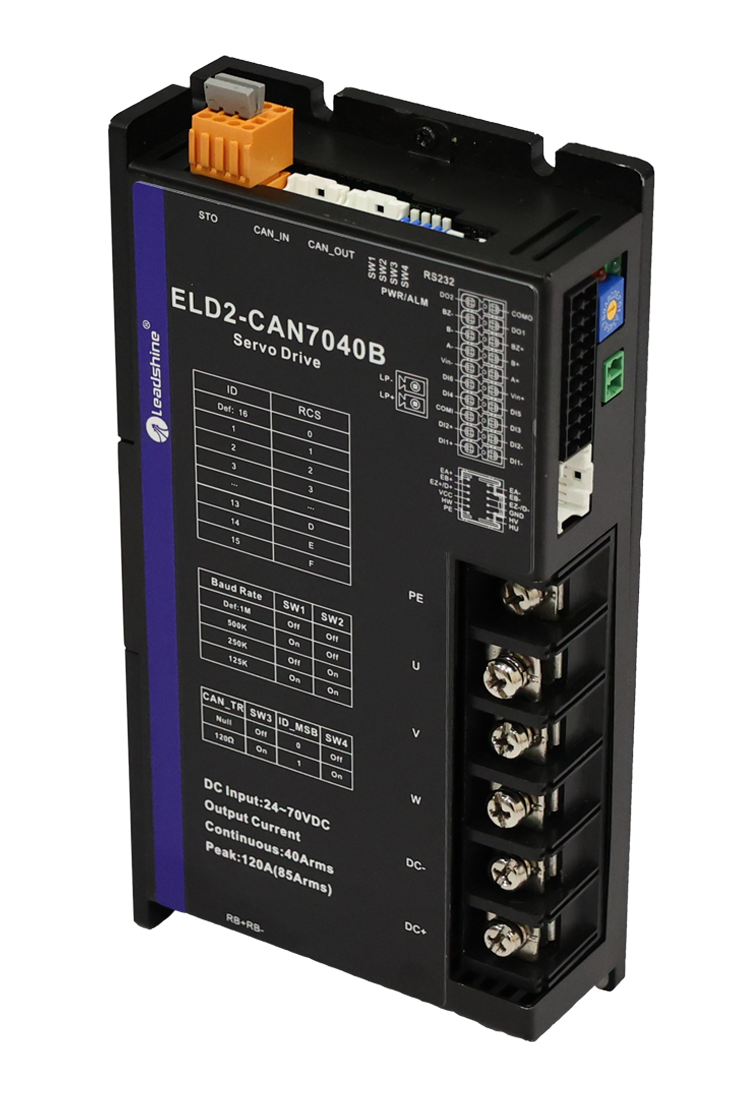

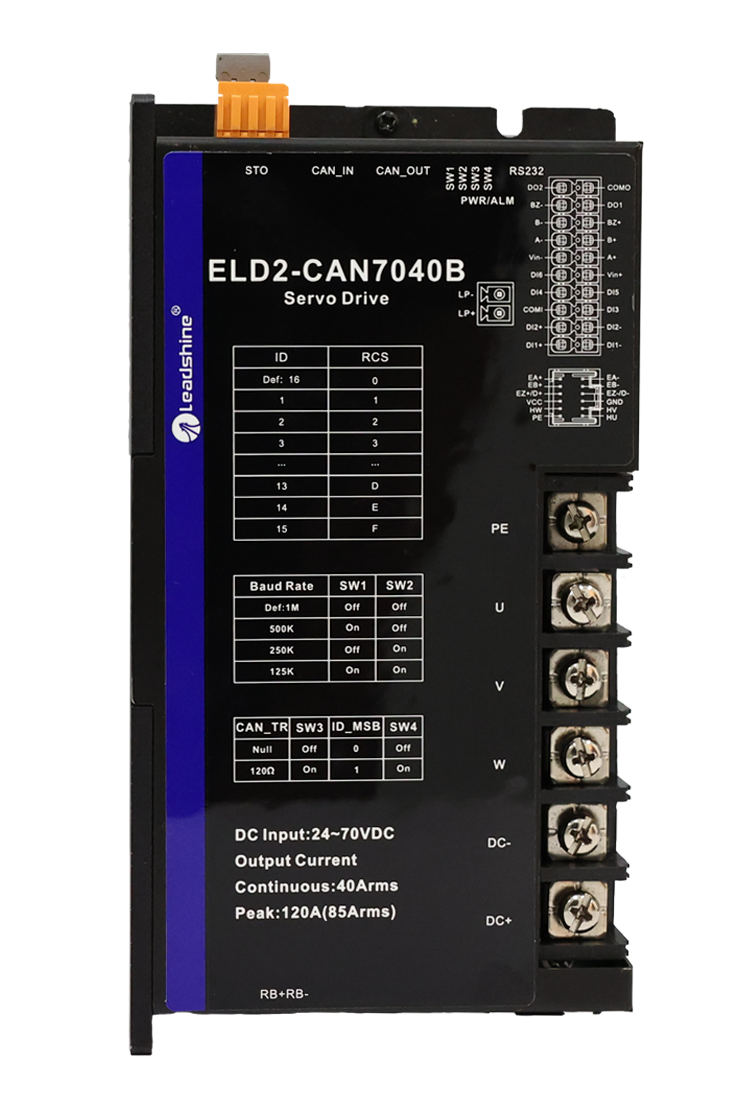

ELD2-CAN7040B
Product Category

ELD2-CAN7040B

● Main power voltage: 24-70VDC. Logic power voltage: 24-70VDC

● Output current: 40Arms continuous; 120A peak

● Direct brake output: 24VDC/1A

● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● STO function safety

● RS-232 serial interface for easy tuning with Motion Studio


List Price: $ 199.00
Online Special Price: $ 199.00

The ELD2-CAN7040B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.

Technical Data
Drive modelELD2-CAN7040B
Size(mm)194*103*41
Rated power(kW)1.5
Rated current(Arms)40
Peak current(Apeak)120
Main powerVoltage(V)DC24~70
Current(A)40Arms (≤48Vdc)
28Arms(>48Vdc)
Logic powerVoltage(V)DC24-70
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe functionSTO
Protection rankIP20
