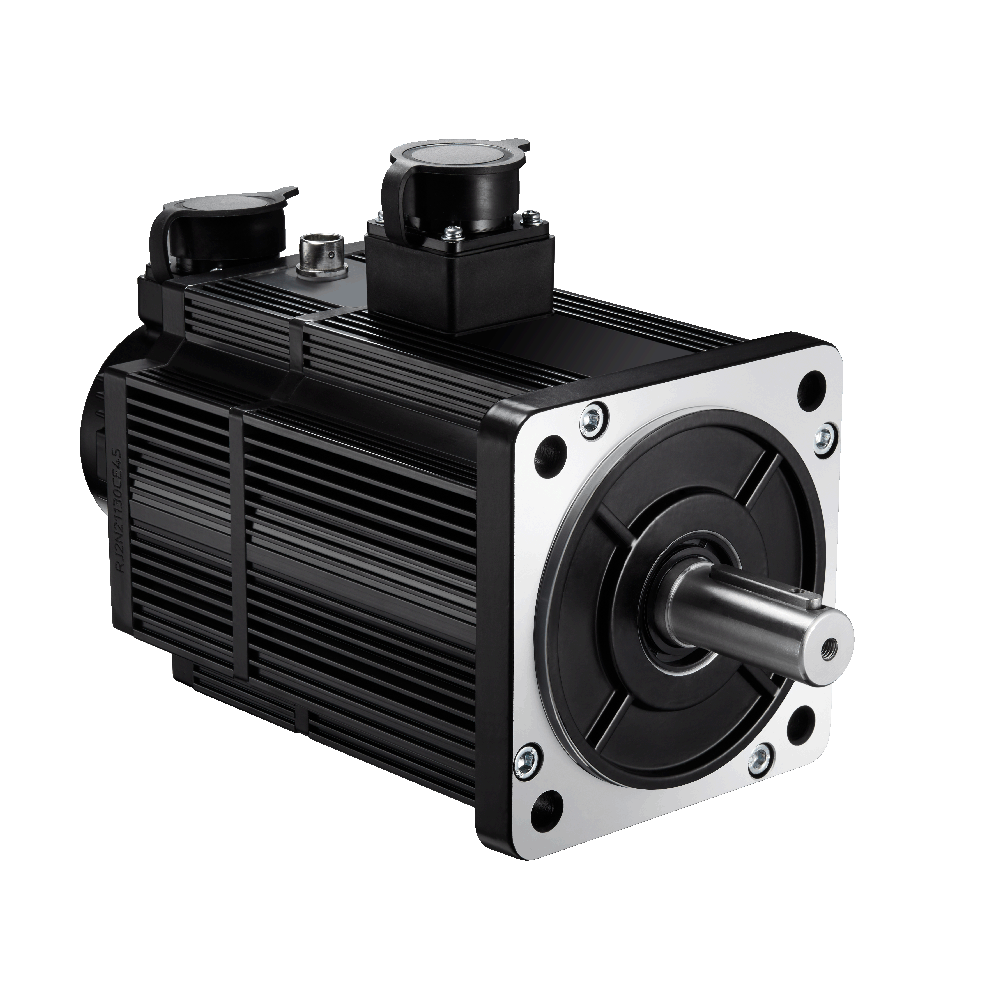

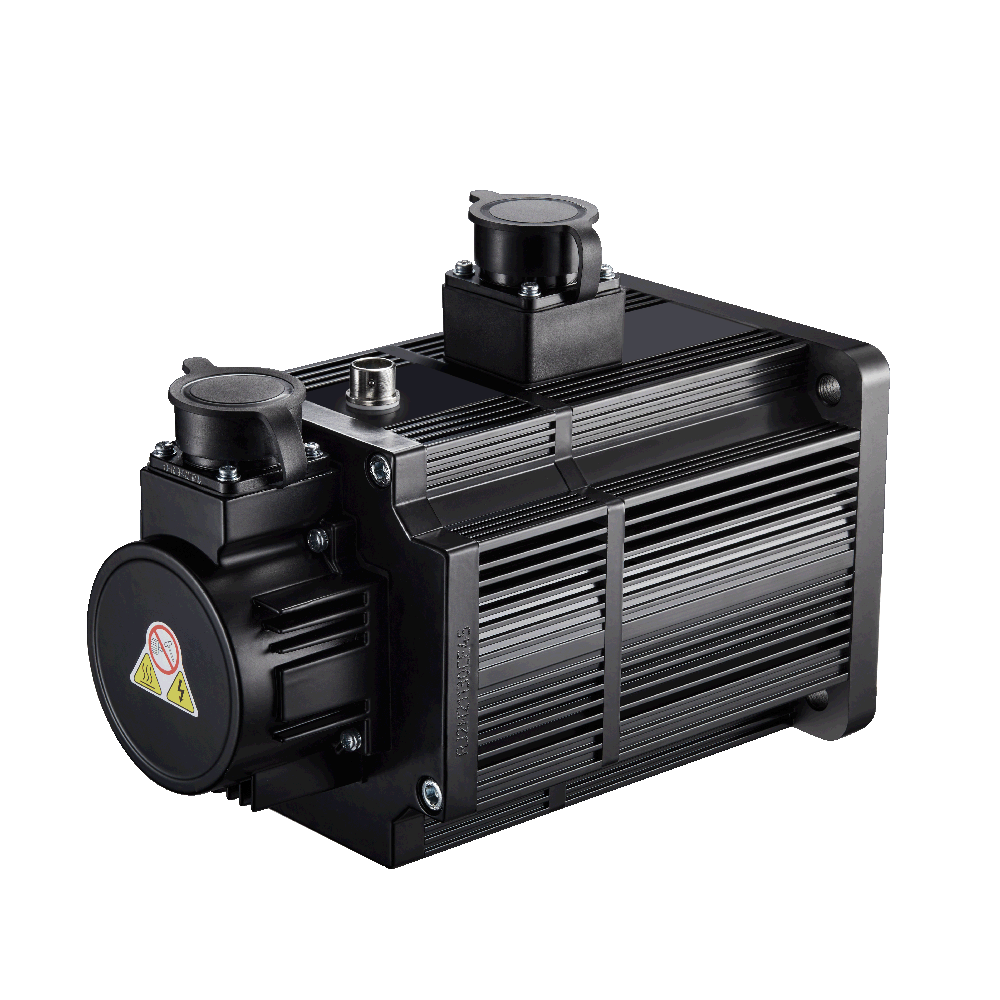

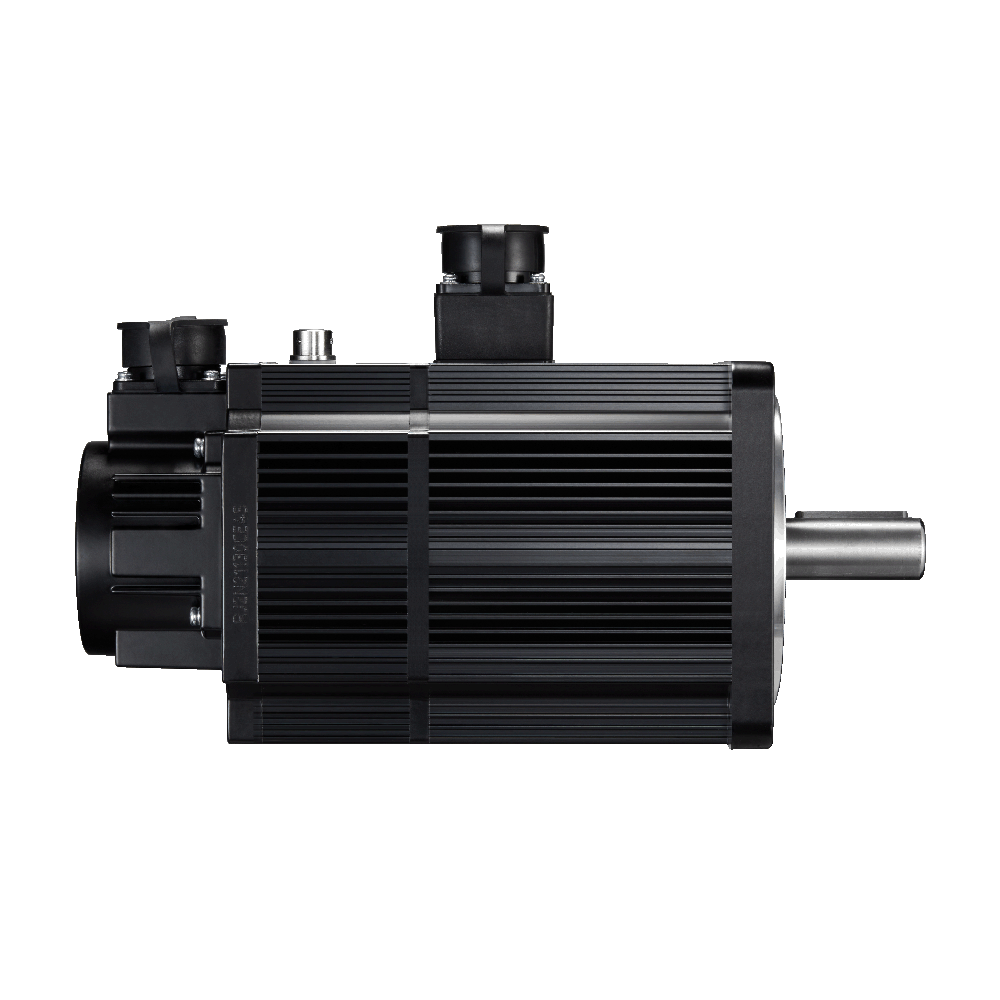

ELM2M-7500LD180ET-H
Product Category

ELM2M-7500LD180ET-H

  • Rated voltage 400VAC, rated power 7500W

  • Frame 180mm, rated torque 48N·m, rated speed 1500r/min

  • 23-bit optical multi-turn absolute encoder

  • With brake, aviation connector

  • Reliable industrial quality

  • IP65


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by LeadShine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 850W to 7500W, frame size range from 130mm to 180mm.

Technical Data
ModelELM2M-7500LD180ET-H
Frame Size (mm)180
Rated Voltage (Vac)400
Rated Power (W)7500
Rated Torque (N.m)48
Peak Torque (N.m)119
Rated Speed (rpm)1500
Peak Speed (rpm)3000
Rated Current (Amp)25.7
Peak Current (Amp)64
Torque Constant (N.m/Amp)1.86
Back EMF Constant (V/krpm)123
Resistance (Ω)0.16
Inductance (mH)4.3
Inertia (kg*m2*10-4)100.7
Poles10
Encoder Type23bit  optical
IP RatingIP65
Weight (Kg)37

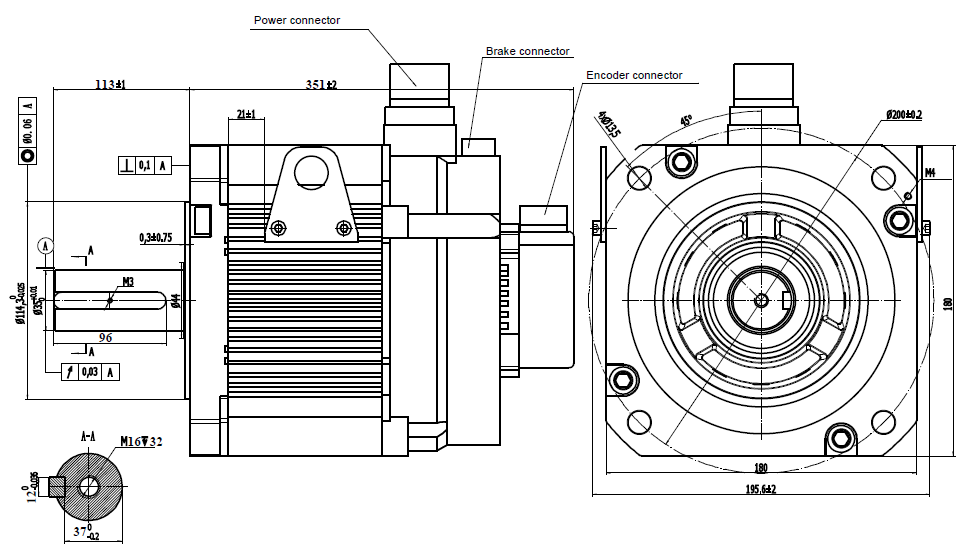

Mechanical

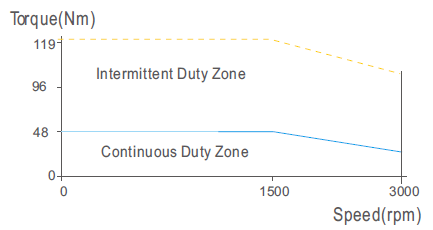

Speed-Torque Curve
