Rated voltage 400VAC, rated power 4400W

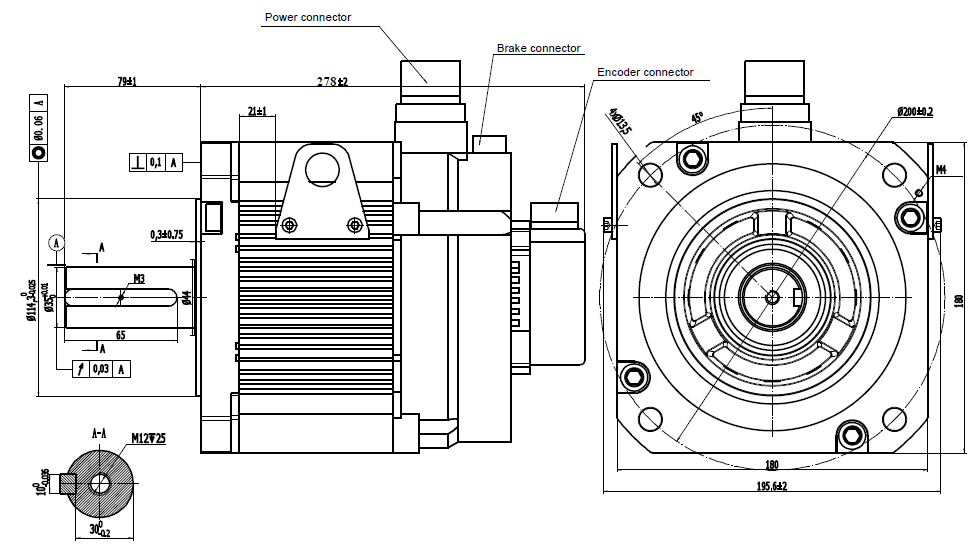

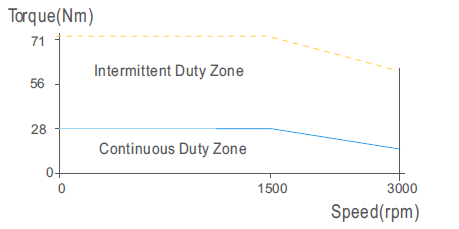

Frame 180mm, rated torque 28.4N·m, rated speed 1500r/min
23-bit optical multi-turn absolute encoder
With brake, aviation connector
Reliable industrial quality
IP65

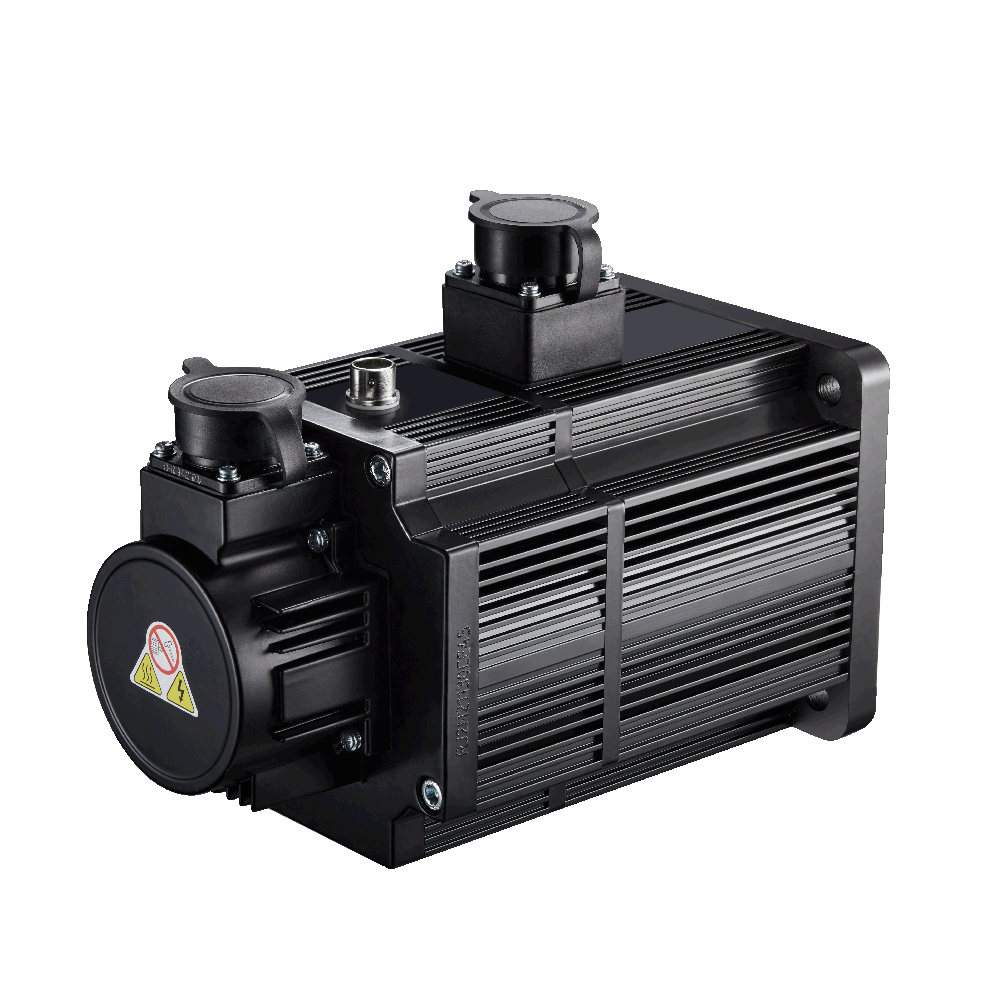

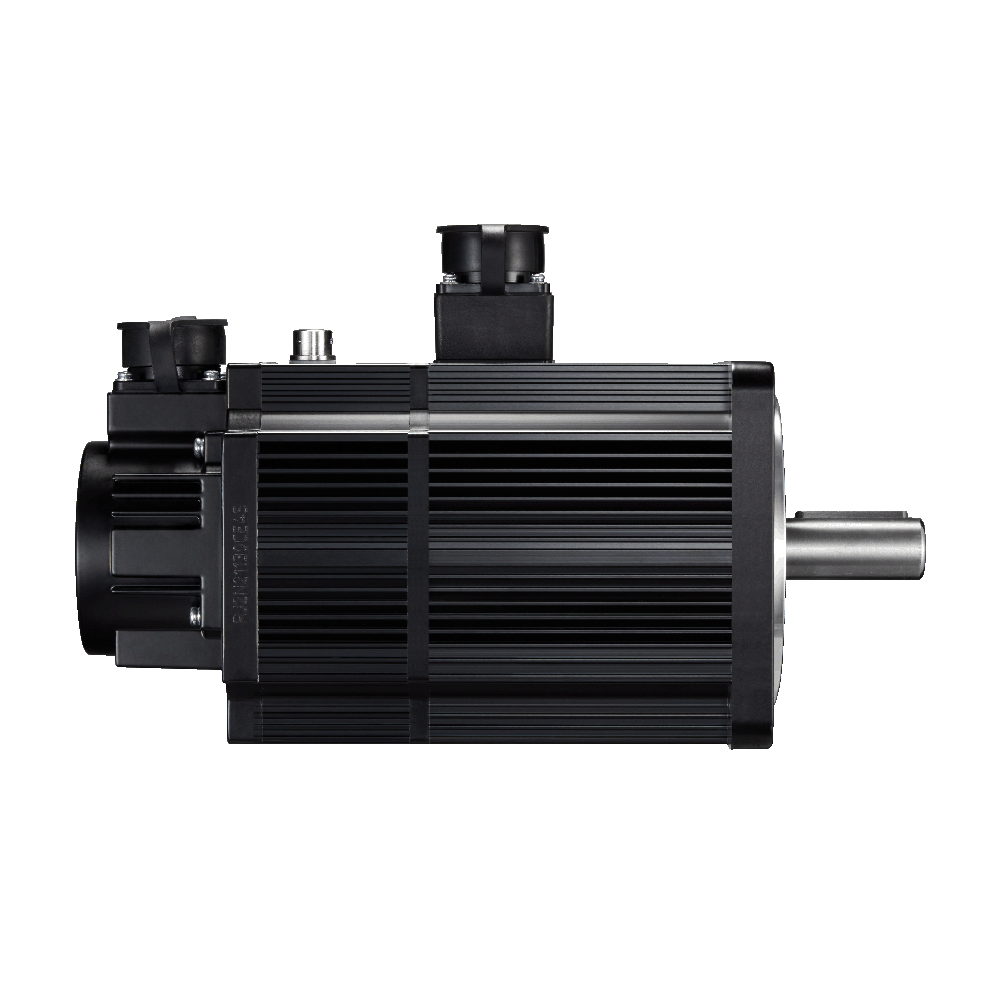

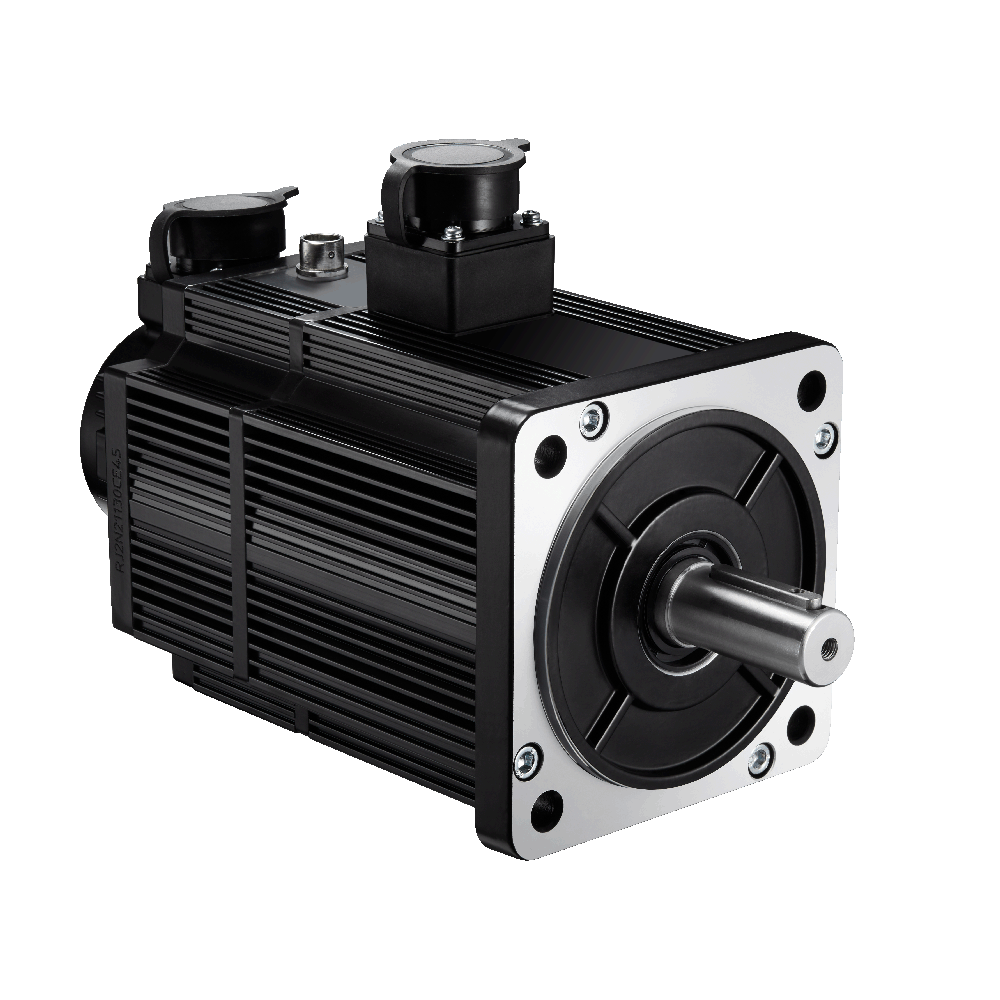

The AC servo motors are designed by LeadShine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 850W to 7500W, frame size range from 130mm to 180mm.
