Voltage 48V, rated power 50W

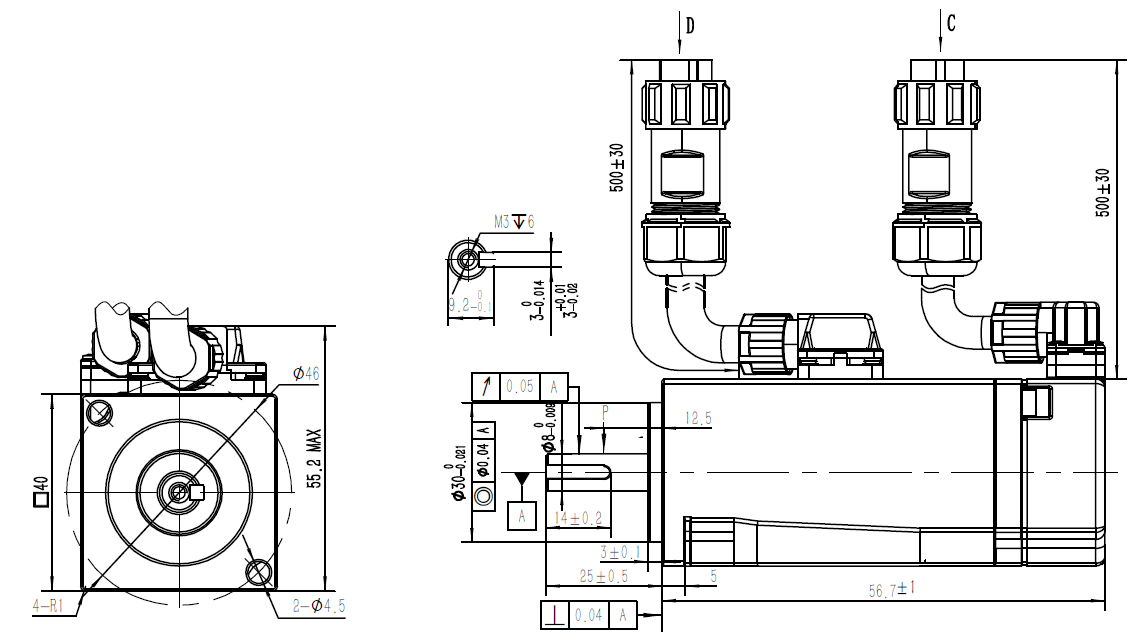

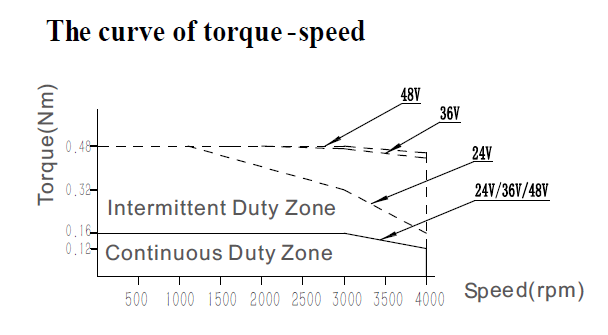

Frame 40mm, rated torque 0.16Nﾷm, rated speed 3000r/min
No brake
Insulation class: Class F
17 bit magnetic multi-turn absolute encoder
IP65

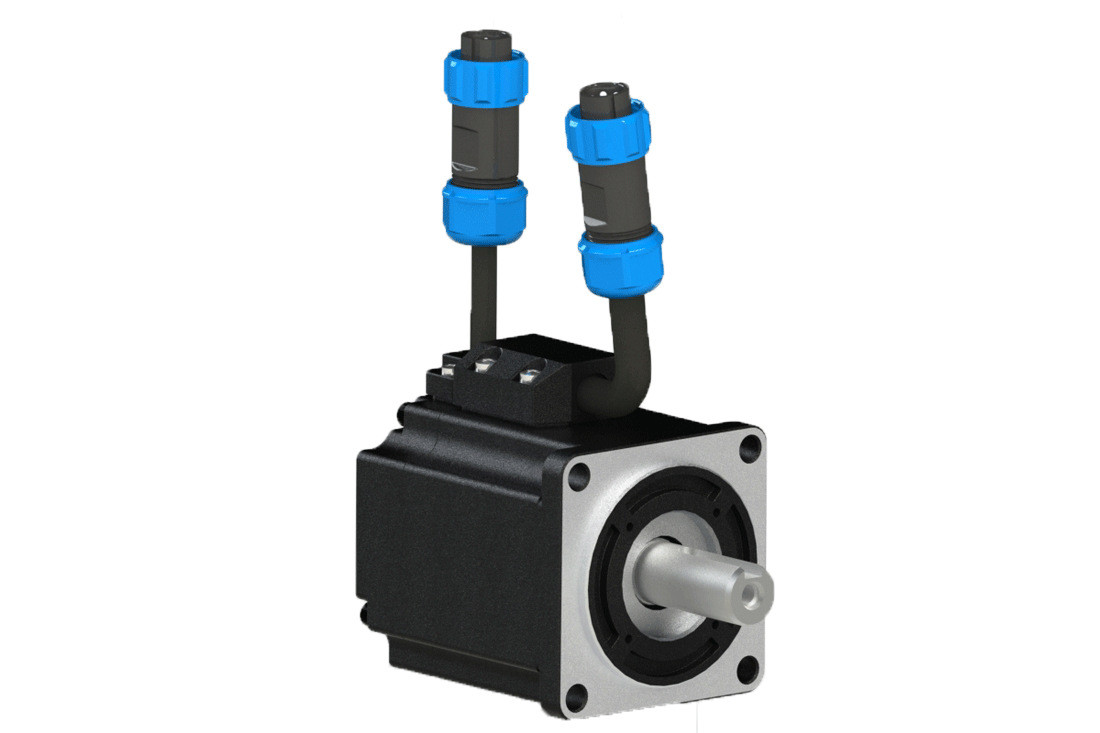

The ELVM series is a new low voltage servo motor series designed by LeadShine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 2000W, with 2500-Line incremental encoder or 17-bit absolute encoder.
