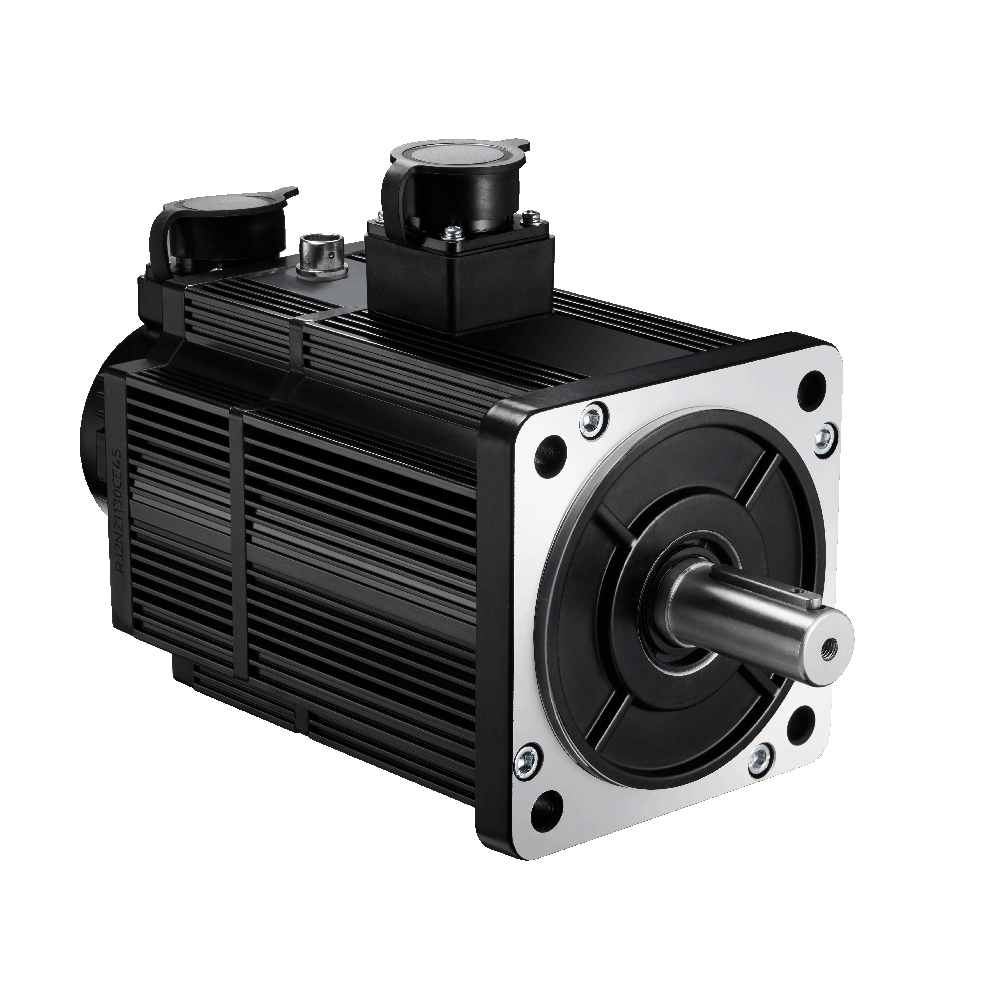

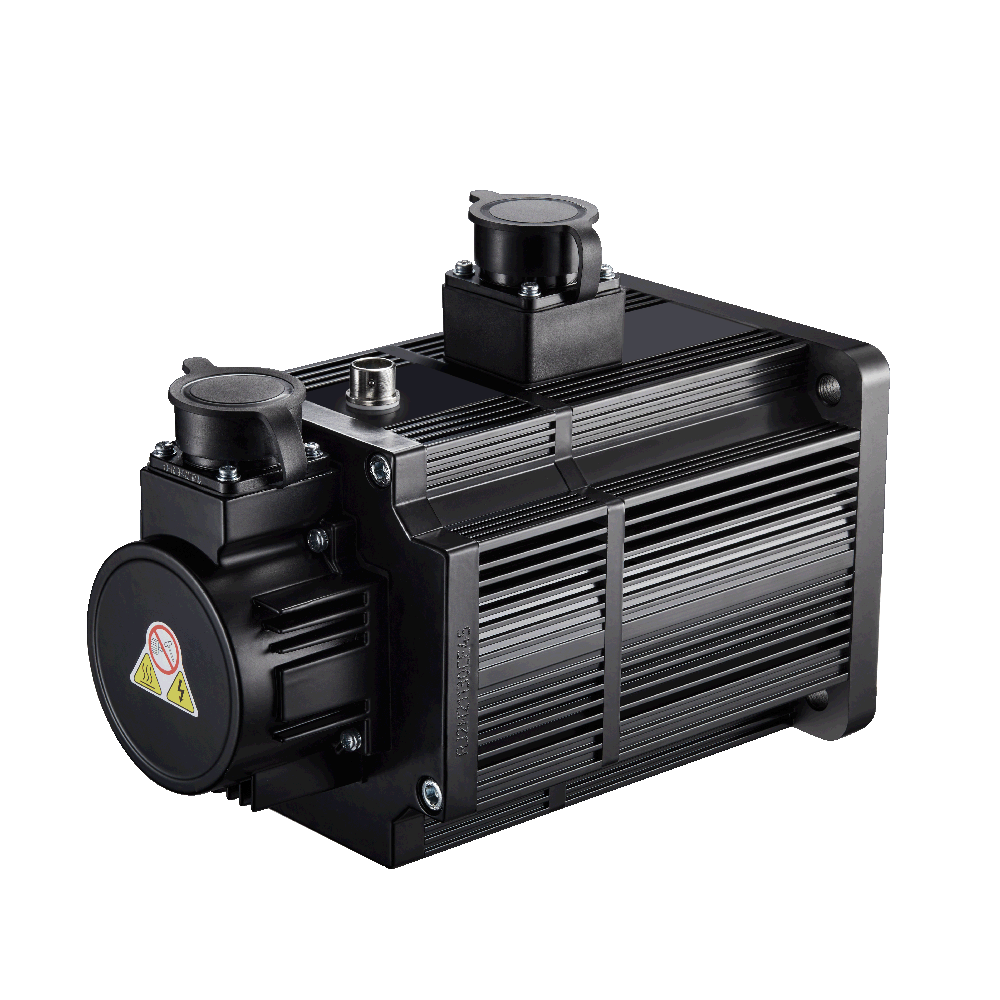

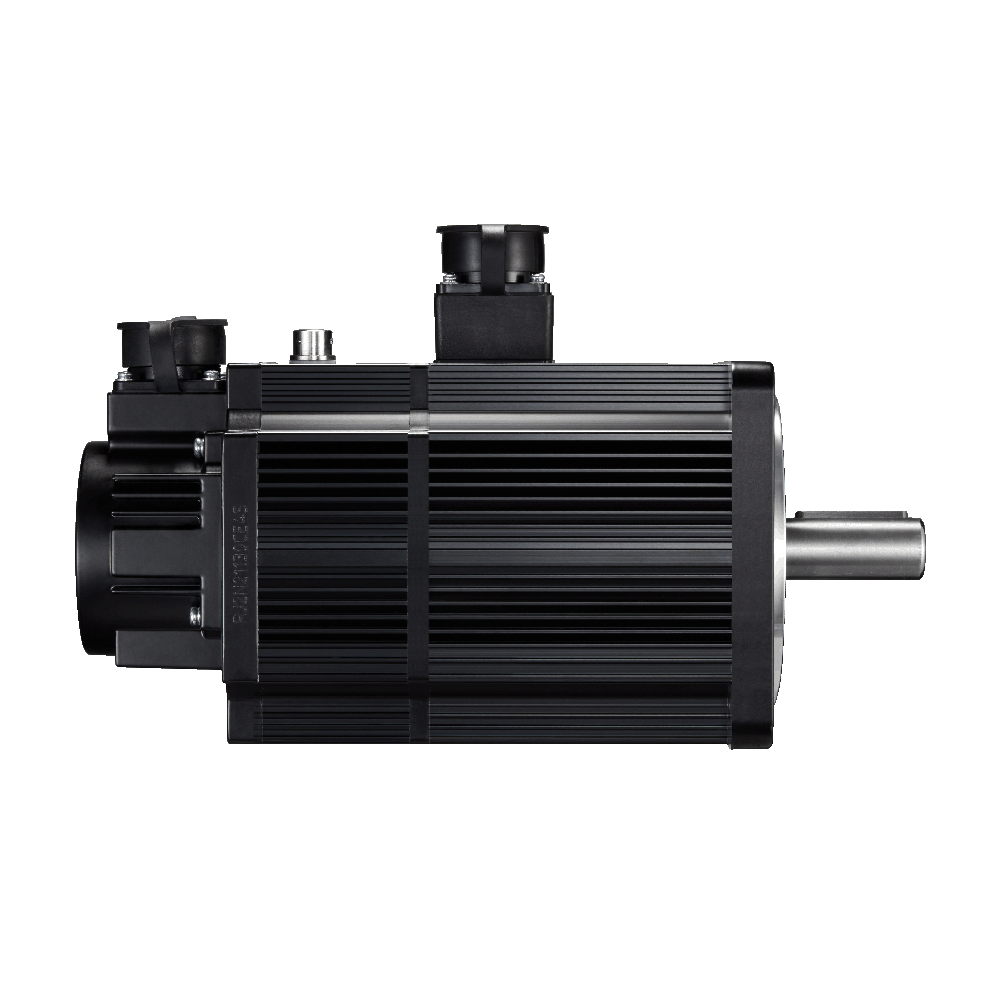

ELM-4400LM180ET-H
Product Category

ELM-4400LM180ET-H

● Rated voltage 380VAC, rated power 4400W

● Frame 180mm, rated torque 28.4N·m, rated speed 1500r/min

● 23-bit absolute encoder

● With brake, aviation connector

● Reliable industrial quality

● IP65

List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by LeadShine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 7500W, frame size range from 40mm to 180mm. 17-bit/23-bit absolute encoders are optional. Multiple motor connector types are available.

Technical Data
ModelELM-4400LM180ET-H
Frame Size (mm)180
Rated Power (W)4400
Rated Voltage (V)380
Rated Torque (N·m)28.4
Peak Torque (N·m)71.1
Rated Current (Arms)15.7
Peak Current (Arms)39.3
Rated Speed (r/min)1500
Peak Speed (r/min)3000
Inertia (kg·m²·10-4)86
Mass (kg)26.5
