● Pulse control, max pulse input frequency up to 500 kHz
● Support position mode and internal velocity mode
● Support single-ended pulse input and differential pulse input
● Encoder signals A/B/Z differential output and A/B/Z OC output
● 9 inputs and 6 outputs
● Rated voltage 220VAC 1ph
● Rated power 750W
● Available 17-bit/23-bit encoder
● Automatic motor identification

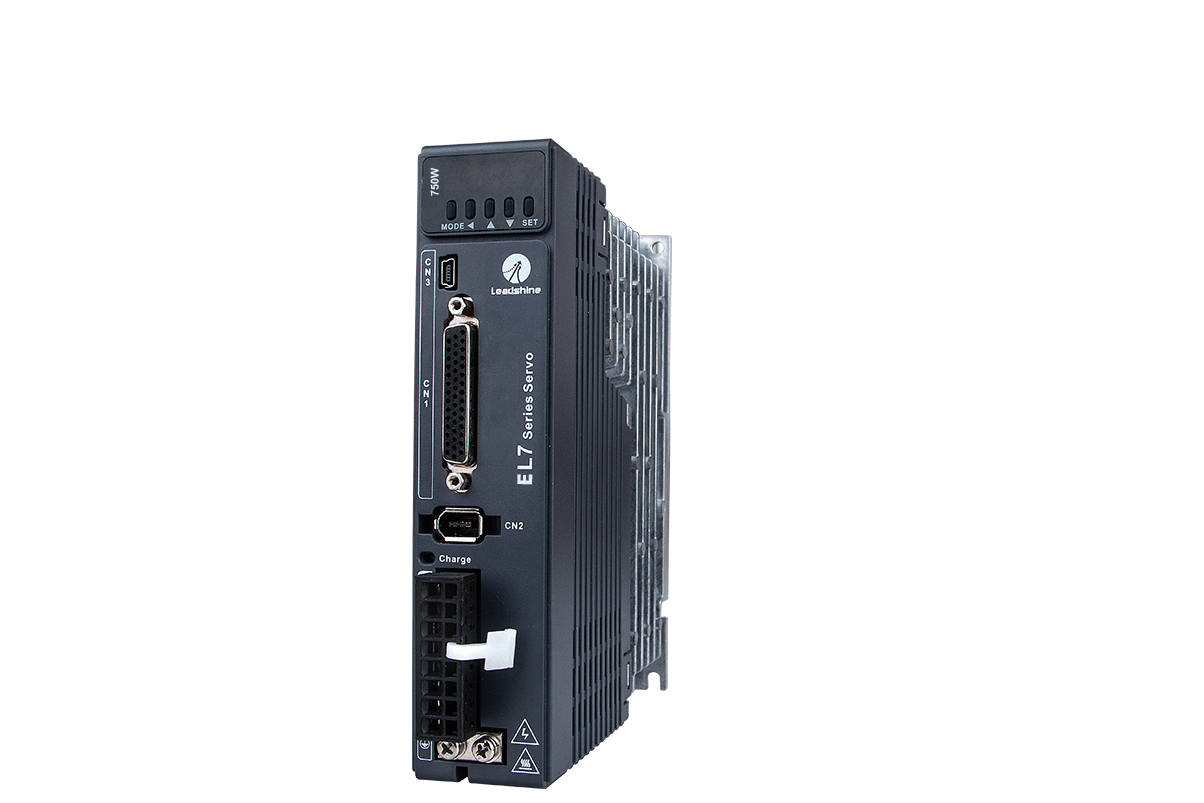

EL7 Series AC servo drives are high performance AC digital servo drives which is designed for position / velocity / torque high accurate control, 220VAC version power range up to 2kW, 380VAC version power range up to 7.5kW and it can provide intelligent performance with easy tuning process.
Combined with abundant features like MFC, vibration suppression, Multi-mode filter function, etc. It provides machines a compact size, low tuning works, but high resolution encoder up to 23-bit, which can be used for high accuracy applications.
