2 phase, NEMA 23 frame size

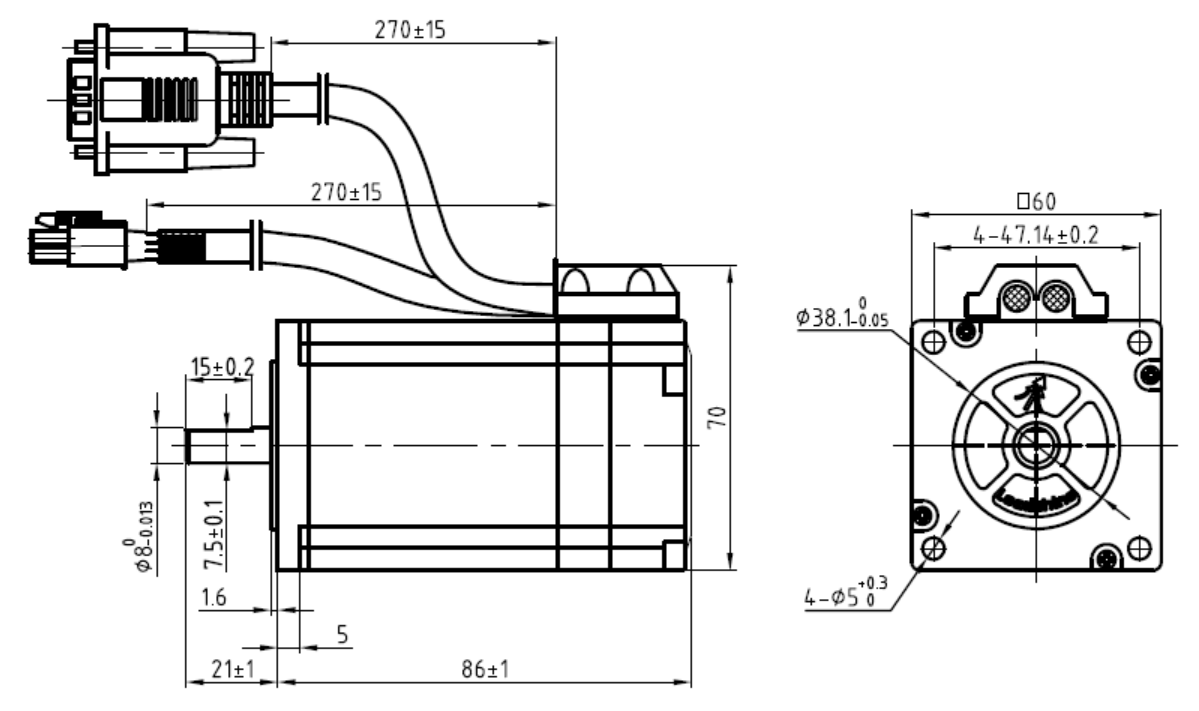

86 mm (3.39 inch) long
5 A phase current
2.1 N.m (298 oz-in) holding torque
8 mm (0.315 inch) shaft size
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
High precision, low motor heating, and low vibration

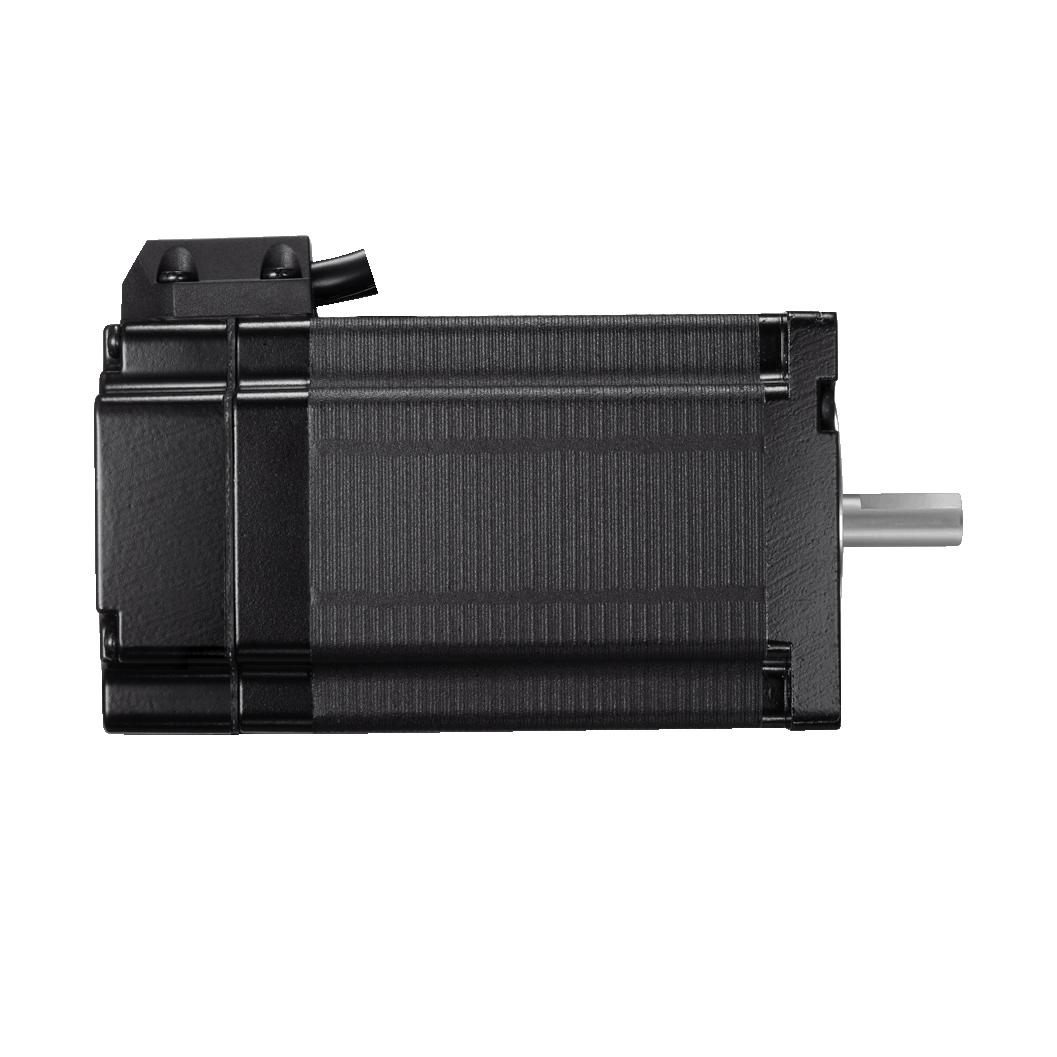

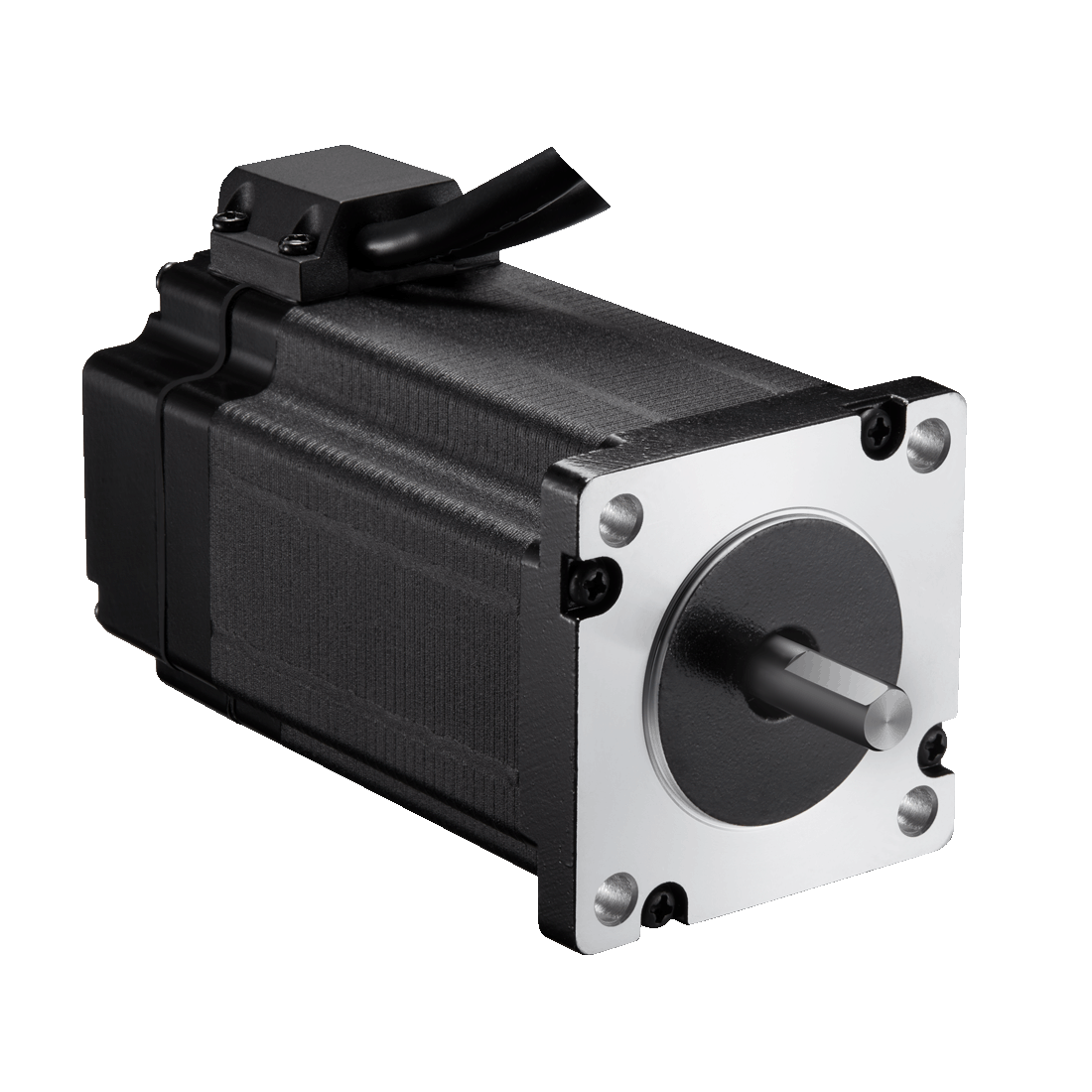

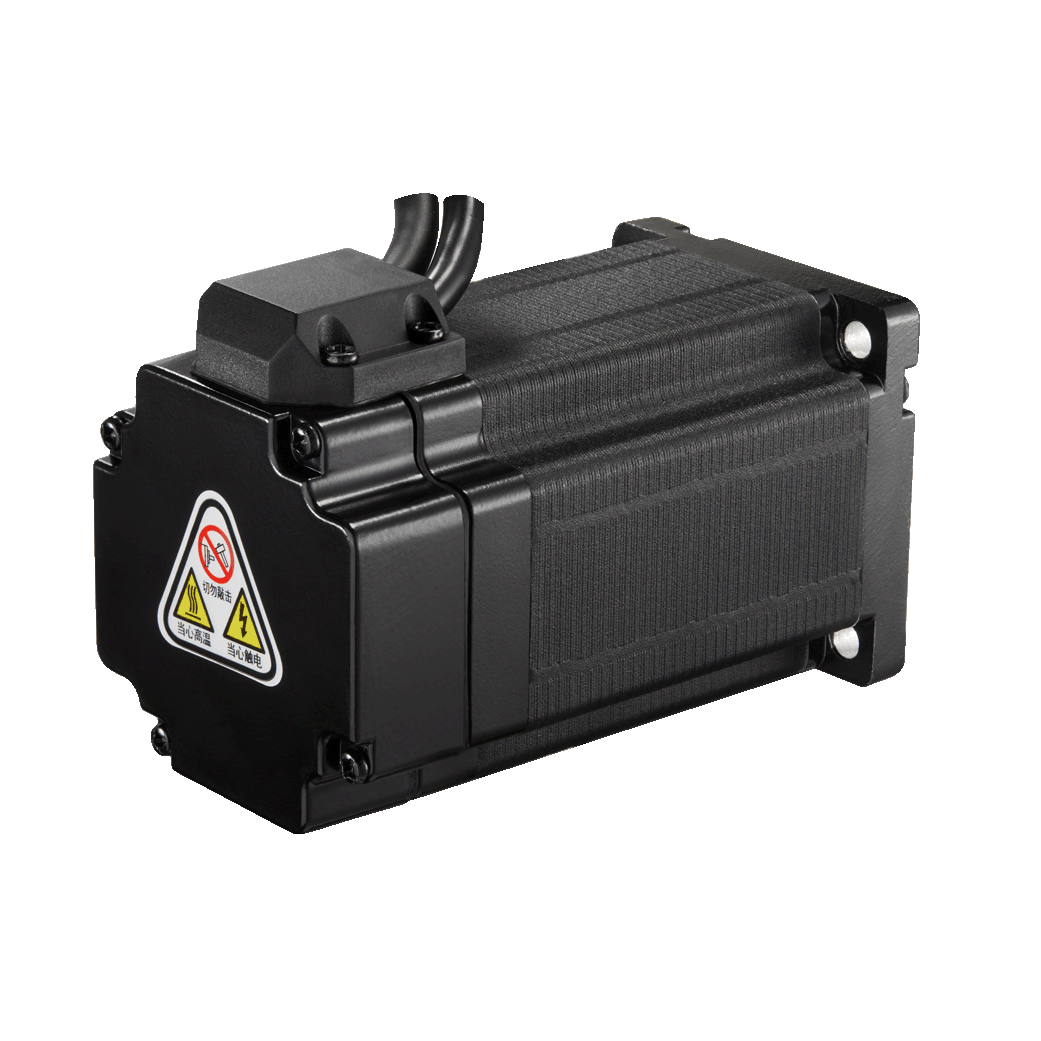

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line （20,000 counts/revolution） differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.
