NEMA 23 motor + stepper drive
Step & direction, or CW / CCW controls
2 N.m (285 oz-in) holding torque
20 – 50 VDC operating voltage
15 micro-step settings via DIP switches
Software configurable custom micro-step & current
Anti resonance tuning via software
Low and middle speed range anti resonance
Smooth motor movement
Extra low motor heating and noise
Soft-start for no “Jump” when powered on
Reduced wiring for easy setup and installation
Auto current deduction

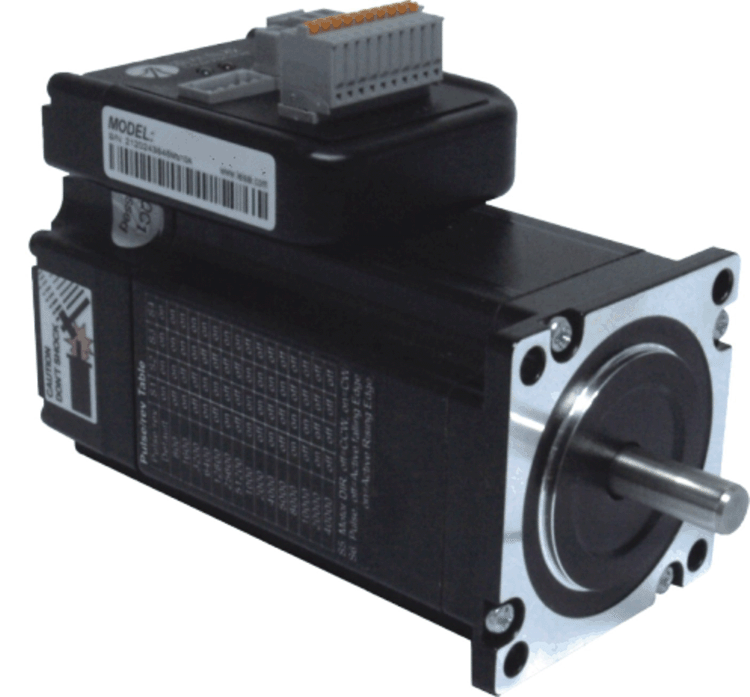

Leadshine's iST-2320 integrated stepper is a NEMA23 stepper motor integrated with an advanced DSP stepper drive. At very compact size and with all components integrated, the iST-2320 can save mounting space, eliminate motor wiring time, reduce interference, and cut/reduce cable and labor costs. By adopting Leadshine’s latest current control technology, the drive of the iST-2320 can drive the stepper motor with high precision, smooth movement, and extra low noise at low speed movement with no obvious resonance area.
