ES-MH33480

Product Category
ES-MH33480
  • 3 phase

  • NEMA 34 frame size

  • 8.0 Nm (1,133 oz - in) holding torque

  • Speed range: 0 - 3,000 RPM

  • Integrated 1,000-line incremental encoder

  • Smooth movement

  • Low motor heating and noise

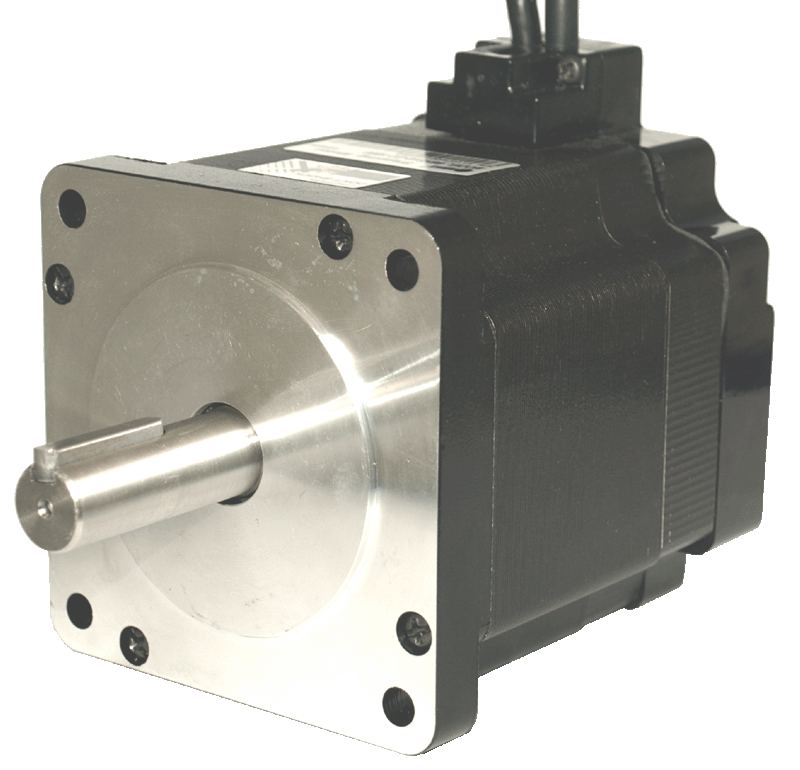

ES-MH33480 is 8.0 Nm (1,133 oz - in) 3 phase NEMA 34 stepper motor with integrated 1,000-line incremental encoder. It is built with high quality material and can move smoothly with high precision, very low noise & heating.



When driven by a Leadshine 3 phase ES-DH  easy servo drive to take direct 120/220/230 input voltage, the position loop between the motor and drive is fully closed. Therefore, loss of steps which limits adoption of stepper systems is totally eliminated. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%. Such systems are also ideal to replace brushless servo systems to offer huge starting and low speed torque. You can get more information on Leadshine Easy servo Products page.


Technical Data
ModelES-MH33480
Current/Phase(A)3
Holding Torque(N.M)8
Speed Range(RPM)0   to 2000
Weight(Kg)1.5

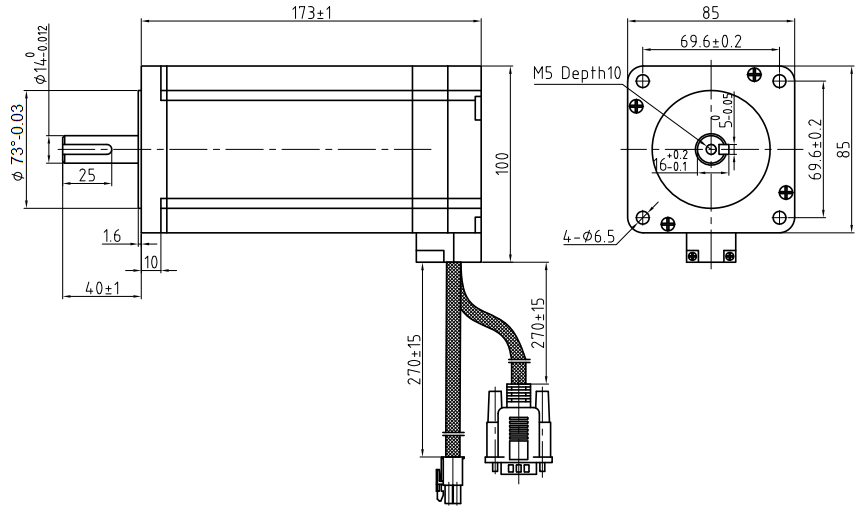

Mechanical

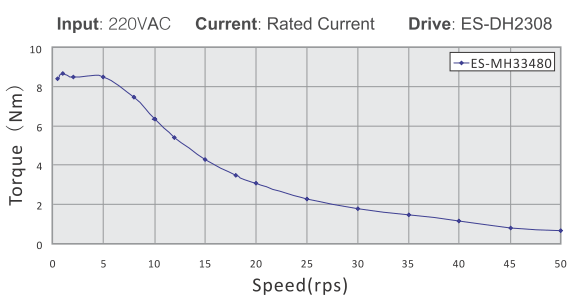

Speed-Torque Curve
