ES-M32320

Product Category
ES-M32320
  • 3 phase

  • NEMA 23 frame size

  • 2.0 Nm (283 oz-in) holding torque

  • Speed range: 0 - 3,000 RPM

  • Integrated 1,000-line incremental encoder

  • Smooth movement

  • Low motor heating and noise

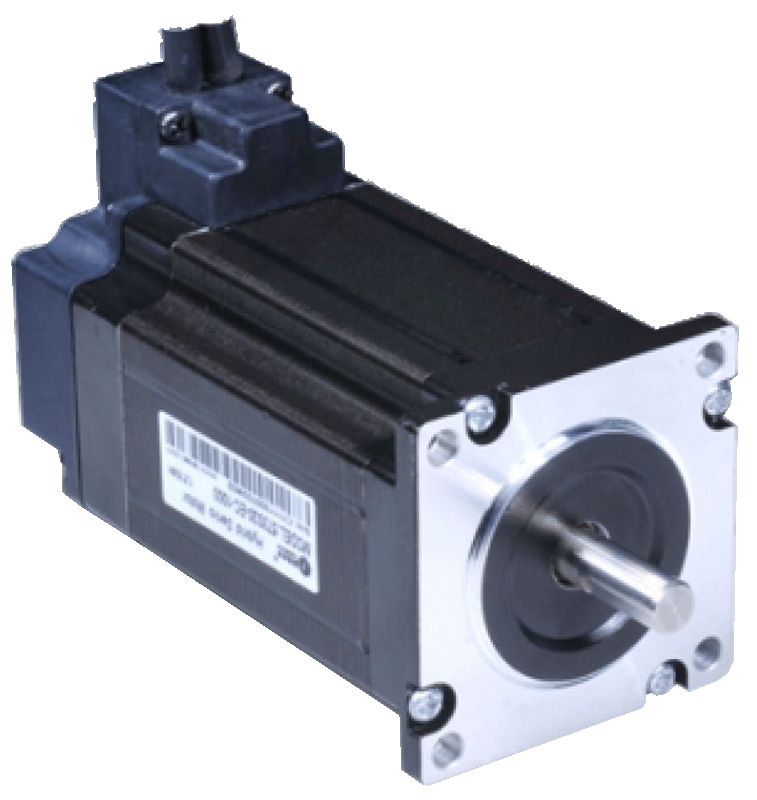

ES-M32320 is 2.0 Nm (283 oz-in) 3-phase NEMA 23 stepper motor with integrated 1,000-line incremental encoder. It is built with high quality material and can move smoothly with high precision, very low noise & heating.



When driven by Leadshine ES-D508 easy servo drive, the position loop between the motor and drive is fully closed. Therefore, loss of steps which limits adoption of stepper systems is totally eliminated. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%. Such systems are also ideal to replace brushless servo systems to offer huge starting and low speed torques. You can get more information on Leadshine Easy servo Products page.



Leadshine ES-M32320 easy servo motor can also be driven by regular open loop 3-phase stepper drives, and output encoder signals to motion controllers, or external devices.


Technical Data
ModelES-M32320
Current/Phase(A)3.4
Holding Torque(N.M)2
Speed Range(RPM)0   to 2000
Weight(Kg)1.35

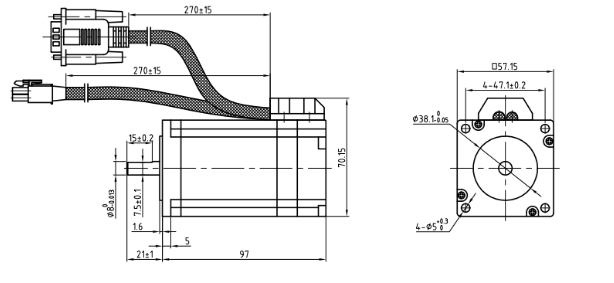

Mechanical

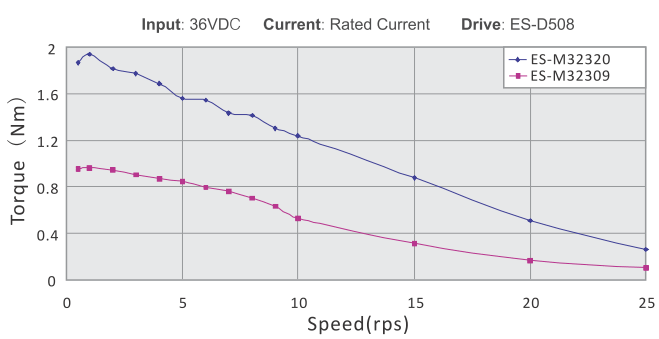

Speed-Torque Curve
