DMA860H
  • Anti-Resonance provides optimal torque and nulls mid-range instability

  • Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors

  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

  • 16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000,5000, 8000, 10000, 20000, 40000

  • Soft-start with no “jump” when powered on

  • Input voltage 18-80VAC or 26-113VDC

  • 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A

  • Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

  • Automatic idle-current reduction

  • Suitable for 2-phase and 4-phase motors

  • Support PUL/DIR and CW/CCW modes

  • Over-voltage, over-current protections


The DMA860H is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DMA860H can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DMA860H an ideal choice for high requirement applications.

Technical Data
ParametersDMA860H
MinTypicalMaxUnit
Output current1-7.2(Peak)A
Input voltage184880VAC
2668113VDC
Logic signal current71016mA
Pulse input frequency0-200kHz
Pulse width2.5--uS
Pulse voltage-5-VDC
Isolation resistance500

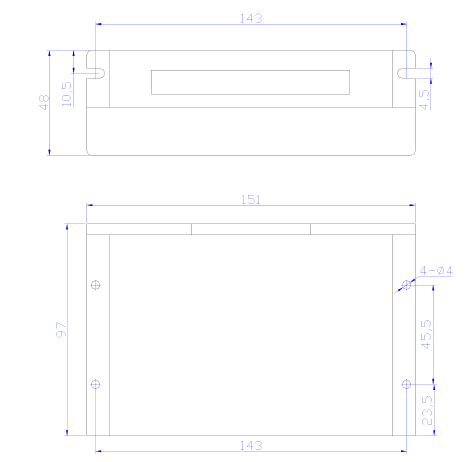

Mechanical
