Anti-Resonance, provides optimum torque and nulls mid-range instability
Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
Microstep resolutions programmable, from 200 to 51,200 steps/rev
Supply voltage up to 50 VDC
Output current programmable, from 1.0A to 8.0A
Pulse input frequency up to 500 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current, short-circuit protections

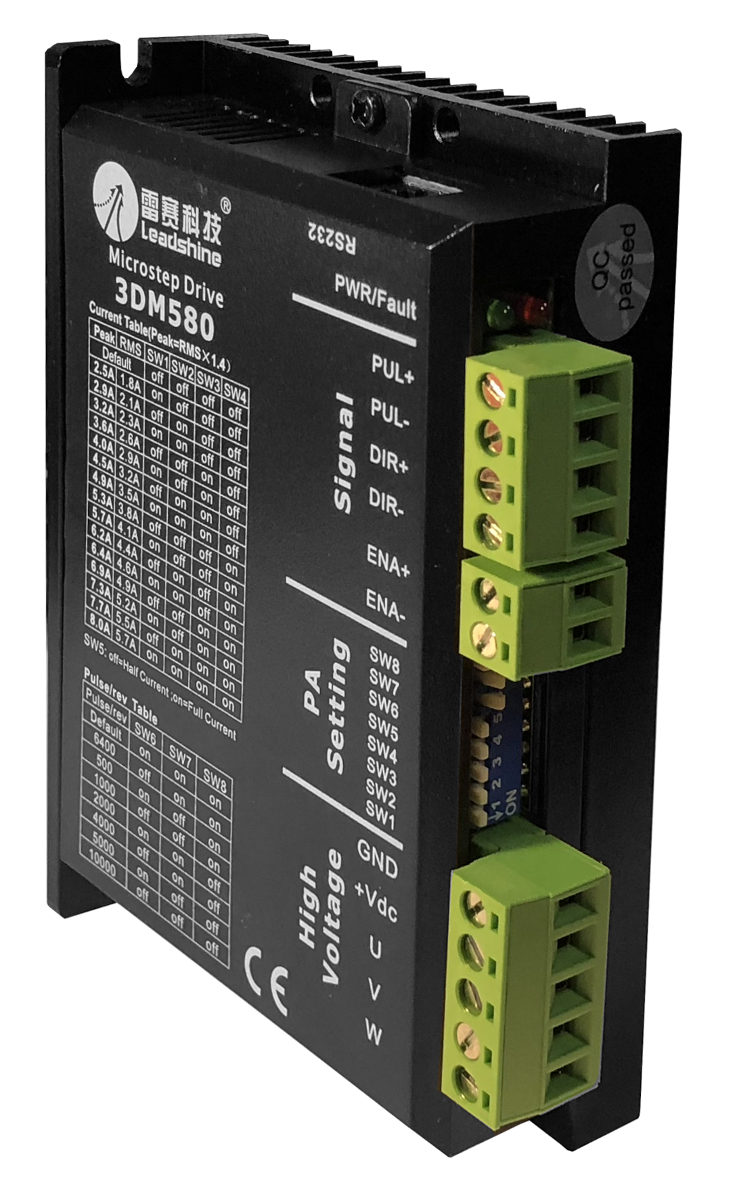

The 3DM580 is a versatility fully 3-phase digital stepping driver based on Leadshine advanced control algorithm. The 3DM580 can take input voltage up to 48 VDC, and output current up to 8.0A. Therefore, it can be used to control 3-phase stepper motors of NEMA 17, 23, and 24.
The 3DM580 brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability.Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating,smoother movement than most of the drivers in the markets. Its unique features make the 3DM580an ideal solution for applications that require low-speed smoothness.
