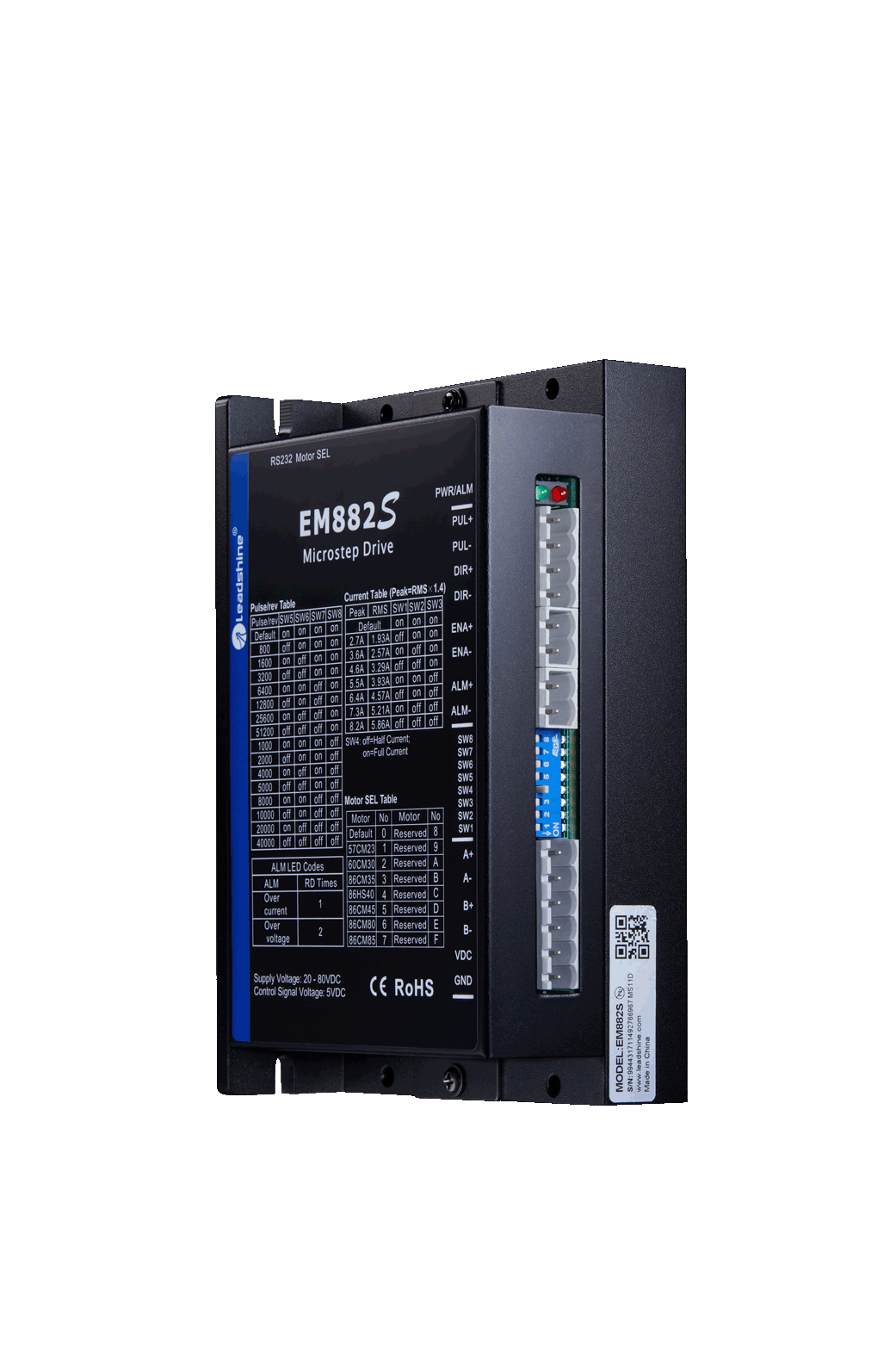

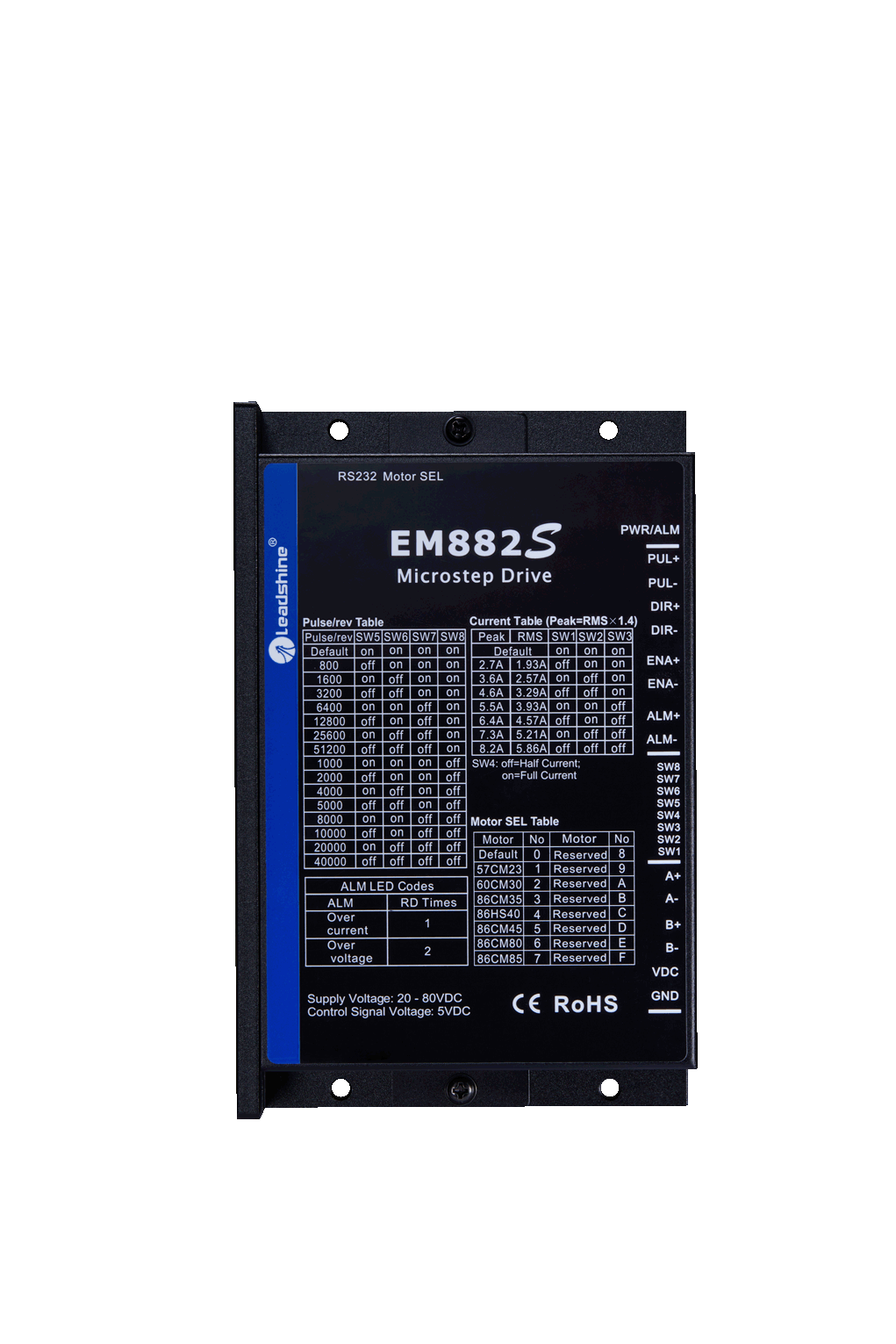

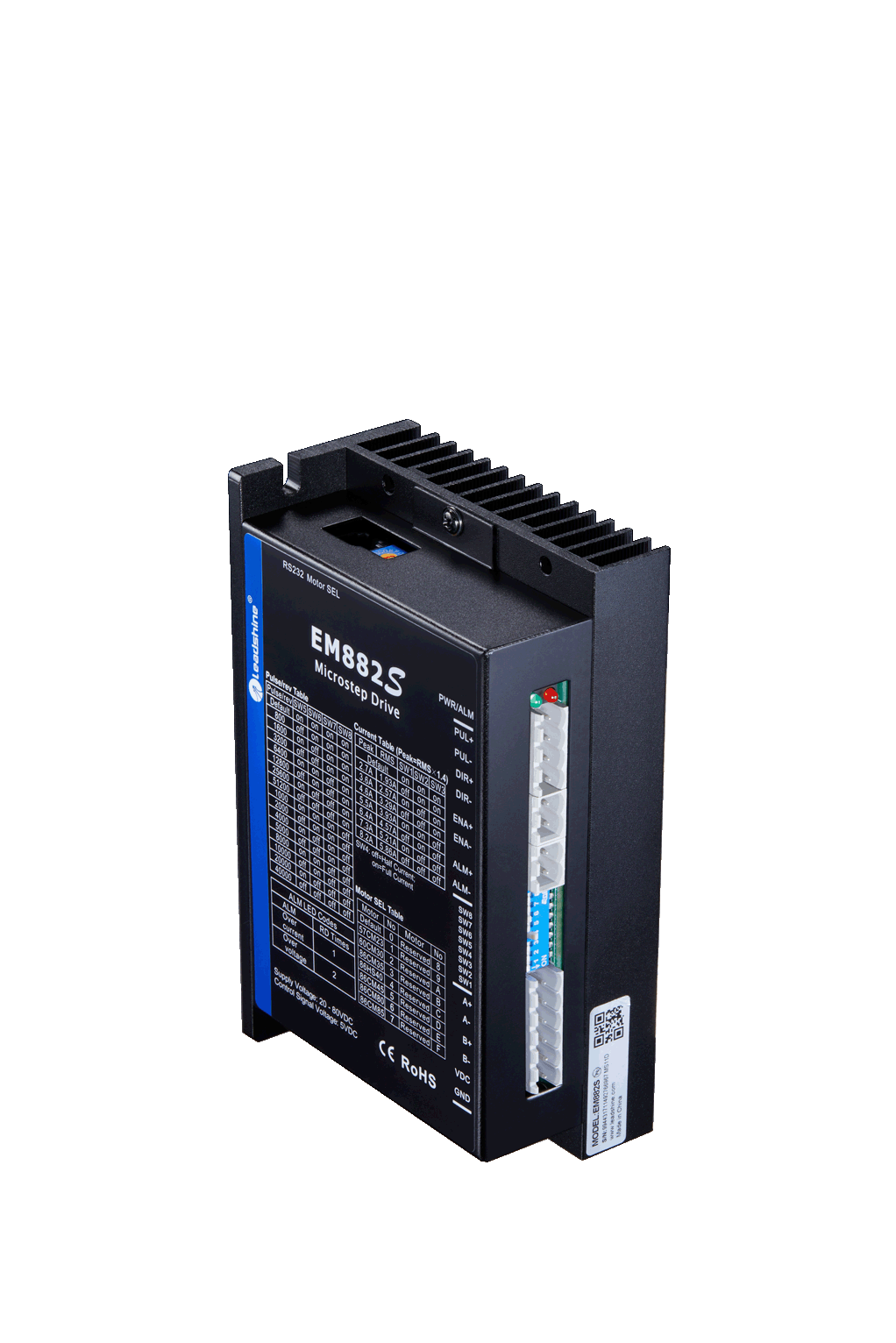

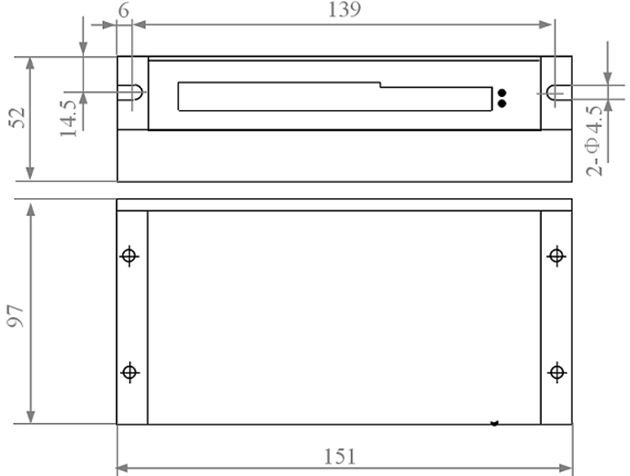

EM882S

● Step & direction (PUL/DIR) or CW/CCW (double pulse) control

● 20-80VDC supply voltage

● 200 KHz max pulse input frequency

● 16 microstep resolutions of 400-51,200 via DIP switches, or 200-51,200 via software

● 8 output current settings of 2.1-8.2A via DIP Switches, or 0.5-8.2A via software

● Configurable control command smoothing for reducing motor vibration

Description

Specifications

Downloads

The EM-S series stepper drives from Leadshine offer superior performance and exceptional high reliability. Based on Leadshine's 20+ years' experience in stepper motor control, they adopt the latest control technology and are ideal for modern machine manufactures. Not only inheriting features of smooth motion, low noise, low heating, etc. from past Leadshine stepper drives, they also offer new functions and features such as improved torque in all speed ranges, fault output, brake control, pulse command smoothing... They are capable of power wide range of stepper motors of NEMA 8, 11, 15, 17, 23, 34, and 42.

Accessories

CABLE-PC

1.2-meter (3.9-foot) RS232 cable with RJ11 for tuning

Related Products

86CM120

1.8°, NEMA 34, 129 mm (5.08 inch), 6.0A/Phase, 12 N.m (1714.32 oz-in)

86CM85

1.8°, NEMA 34, 118 mm (4.65 inch), 6.0A/Phase, 8.5 N.m (1214.31 oz-in)

86CM80

1.8°, NEMA 34, 98 mm (3.86 inch), 6.0A/Phase, 8.0 N.m (1142.88 oz-in)

86CM45

1.8°, NEMA 34, 80 mm (3.15 inch), 6.0A/Phase, 4.5 N.m (642.87 oz-in)

86CM35

1.8°, NEMA 34, 65 mm (2.56 inch), 4.0A/Phase, 3.5 N.m (500.01 oz-in)

60CM30X

1.8°, NEMA 24, 85 mm (3.35 inch), 5.0A/Phase, 3.0 N.m (428.58 oz-in)

LSP-360-48

48 VDC power supply 7.5A continuous current

LSP-400-60

60 VDC power supply 6.7A continuous current

Model	EM882S
Series	EM
Command Source	PUL&DIR, CW&CCW
Operation Voltage (VDC)	20-80
Output Current (A, Peak)	8.2
Input Frequency (KHz, Max.)	200
Logical Voltage (VDC)	5
# of Inputs	3
# of Outputs	1
Characteristics	Standard
