2 phase, NEMA 17 frame size
79 mm (3.11 inch) long
2 A phase current
0.6 N.m (184 oz-in) holding torque
5 mm (0.197 inch) shaft size
Built with high quality materials including bearings and shaft made by Japanese manufacturers
High precision, low motor heating, and low vibration

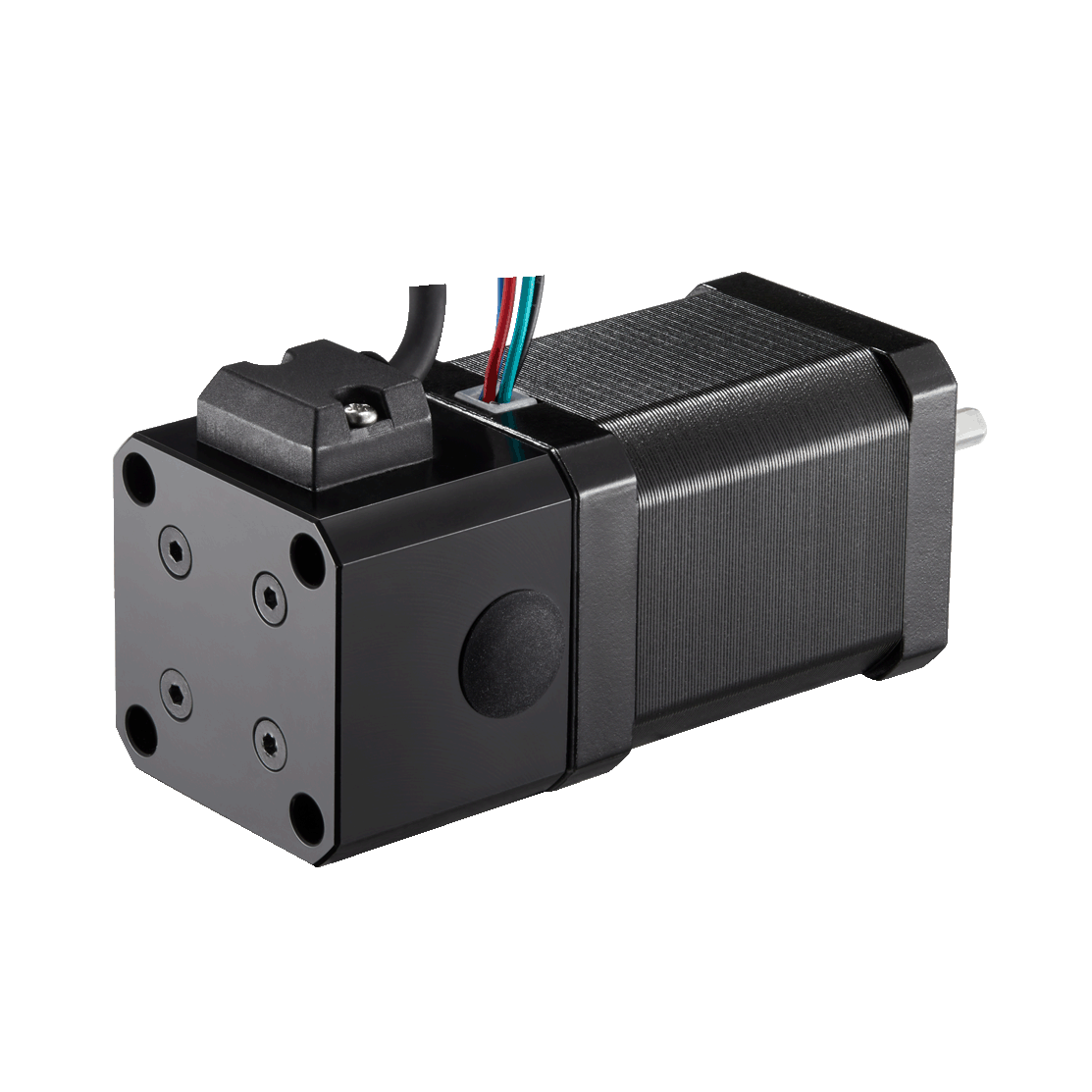

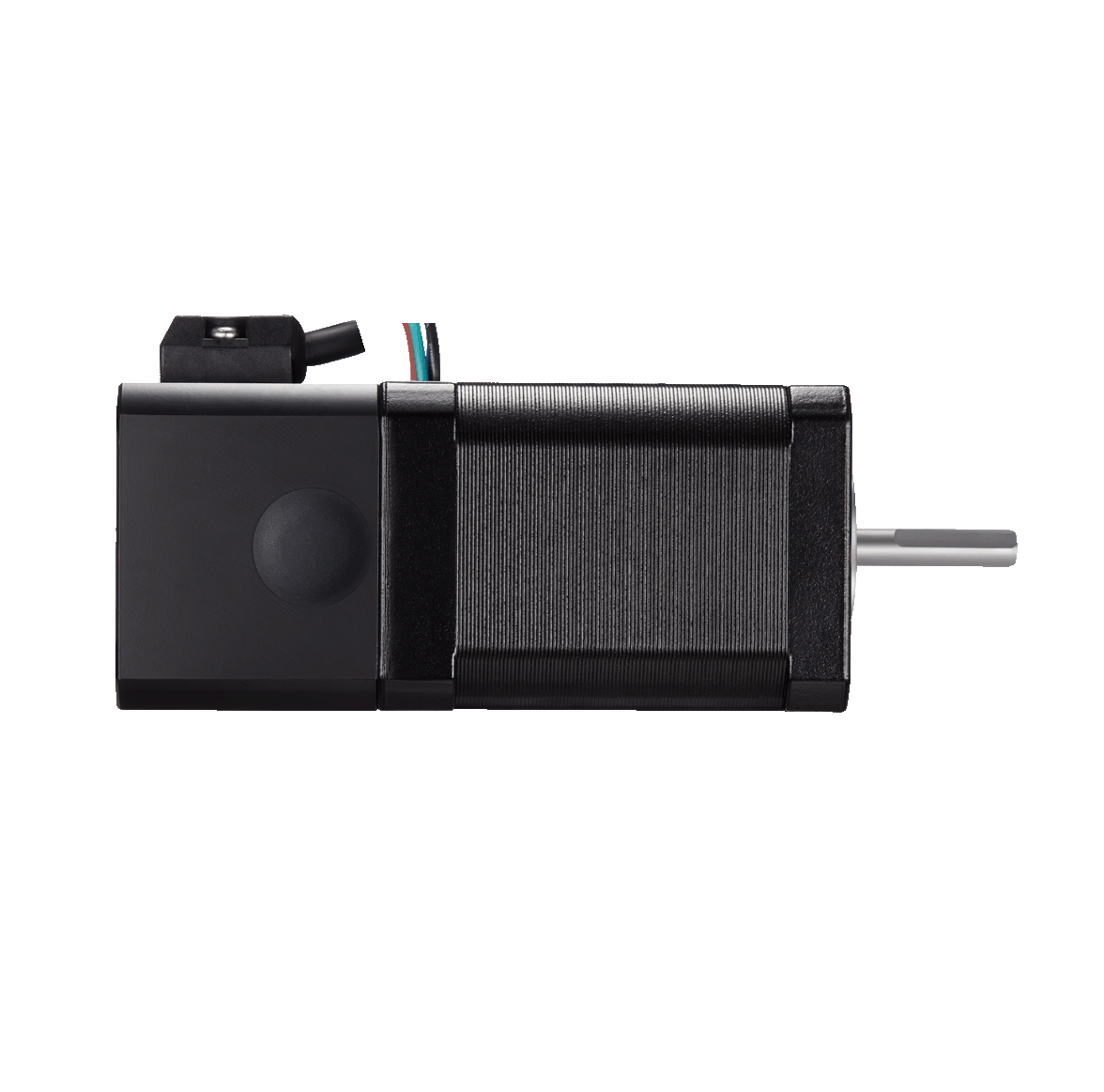

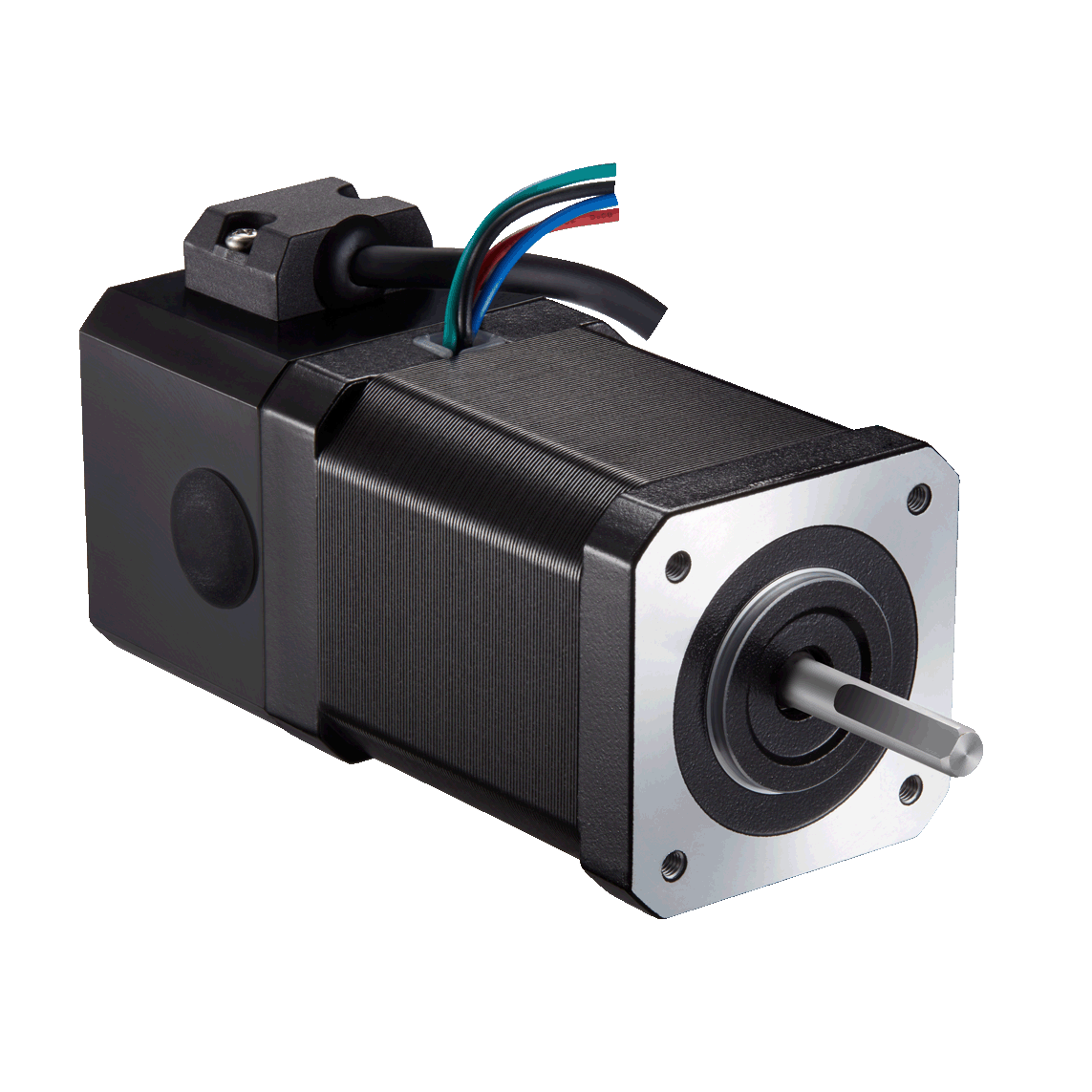

The CM series stepper motors can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.
