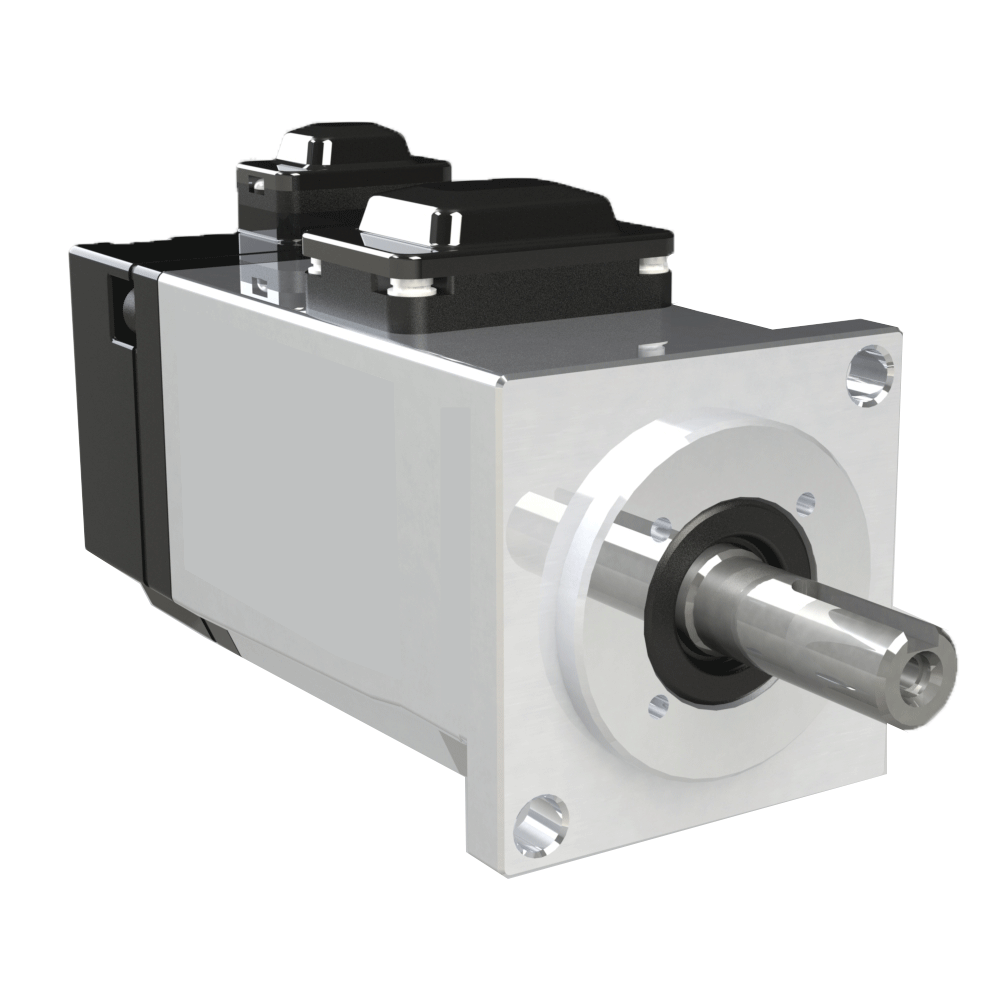

ELM2H-0100LA40E
Product Category

ELM2H-0100LA40E

  • Rated voltage 220VAC, rated power 100W

  • Frame 40mm, rated torque 0.32N·m, rated speed 3000r/min

  • 23-bit optical encoder

  • With brake, direct connector

  • Strong overload capacity

  • IP67


List Price: $ 199.00
Online Special Price: $ 199.00

The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Data
ModelELM2H-0100LA40E
Frame Size (mm)40
Rated Voltage (Vac)220
Rated Power (W)100
Rated Torque (N.m)0.32
Peak Torque (N.m)0.95
Rated Speed (rpm)3000
Peak Speed (rpm)5000
Rated Current (Amp)0.92
Peak Current (Amp)2.85
Torque Constant (N.m/Amp)0.383
Back EMF Constant (V/krpm)23.1
Resistance (Ω)17.7±10%
Inductance (mH)14.3±20%
Inertia (kg*m2*10-4)0.072
Poles10
Encoder Type23bit   optical
IP RatingIP67
Weight (Kg)0.54

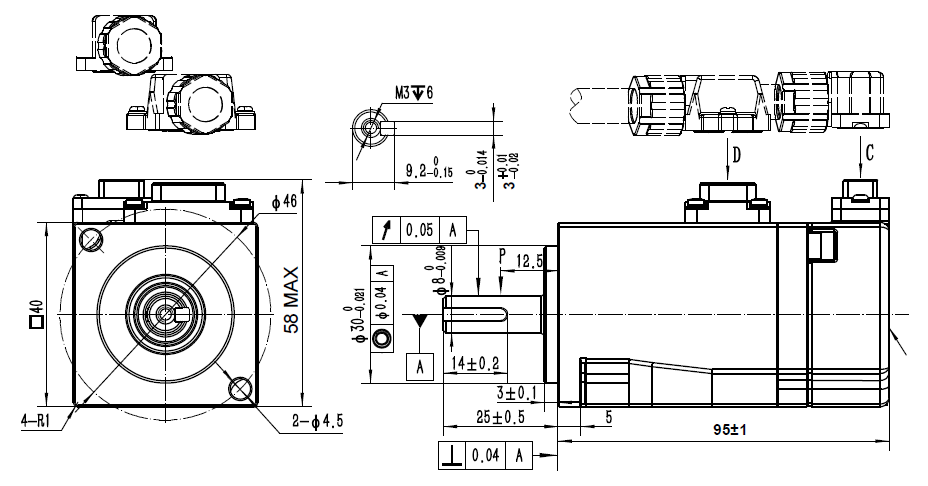

Mechanical

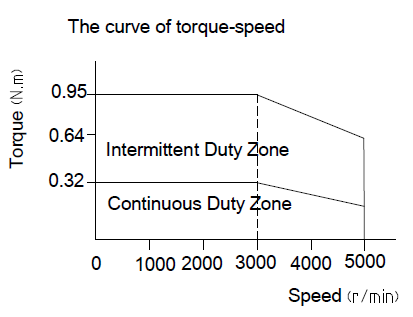

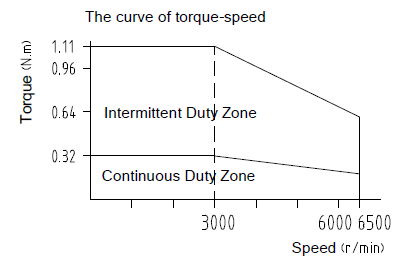

Speed-Torque Curve
