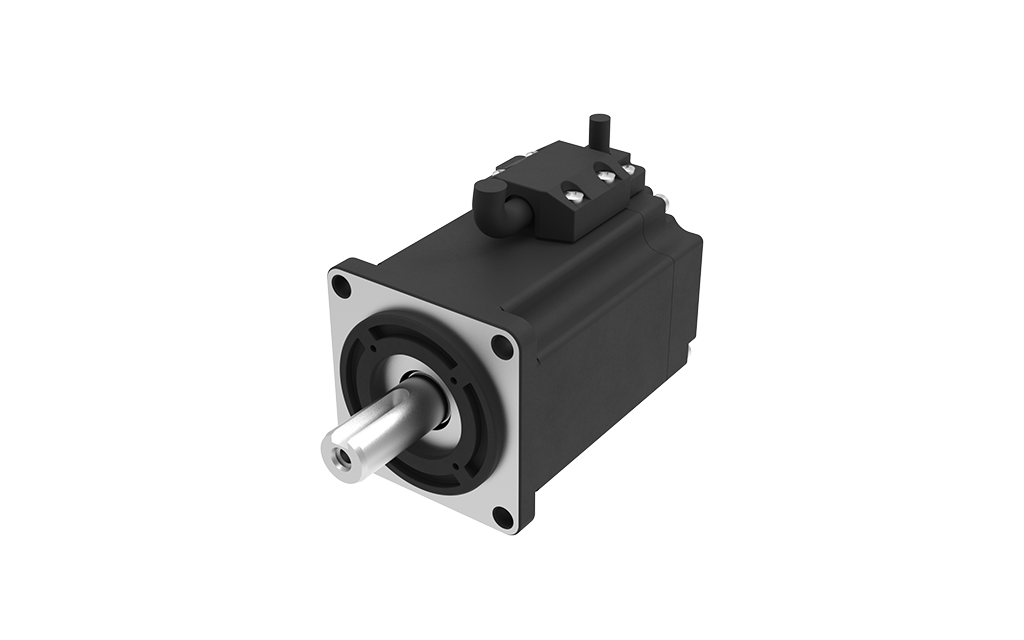

ELVM6040V24FH-M17-HD
Product Category

ELVM6040V24FH-M17-HD

● Rated voltage 24V, rated power 400W

● Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min

● No Brake

● Insulation class: Class F

● 17 bit magnetic multi-turn absolute encoder

● IP65


List Price: $ 199.00
Online Special Price: $ 199.00

The ELVM series is a new low voltage servo motor series designed by LeadShine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torques, low noise, low temperature rising and IP65 protection. The servo motors power range from 50W to 1000W, with 2500-Line incremental encoder or 17-bit absolute encoder.


Technical Data
ModelELVM6040V24FH-M17-HD
Frame Size (mm)60
Rated Voltage (Vac)24
Rated Power (W)400
Rated Torque (N.m)1.27
Peak Torque (N.m)3.81
Rated Speed (rpm)3000
Peak Speed (rpm)4000
Rated Current (Amp)19.9
Peak Current (Amp)61.7
Torque Constant (N.m/Amp)0.068
Back EMF Constant (V/krpm)4.1
Resistance (Ω)0.07
Inductance (mH)0.14
Inertia (kg*m2*10-4)0.58
Poles10
Encoder Type17bit   magnetic
Max radial load(N)245
Max axial load(N)74
IP RatingIP65
Weight (Kg)1.3

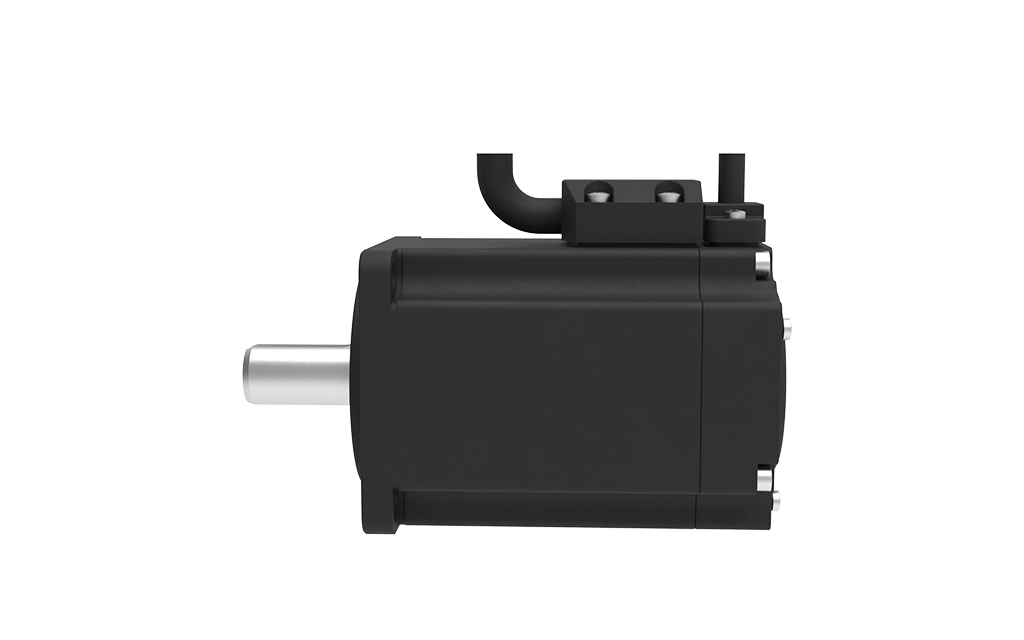

Mechanical

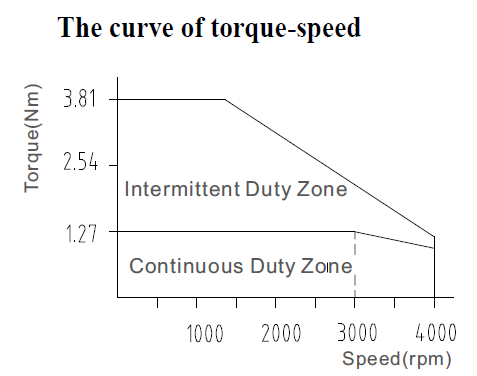

Speed-Torque Curve
