Rated voltage 220VAC, rated power 400W

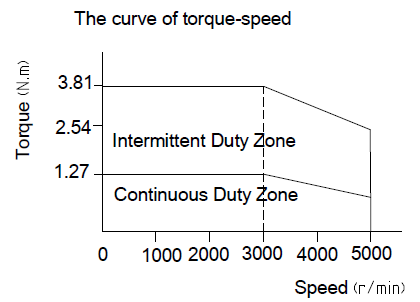

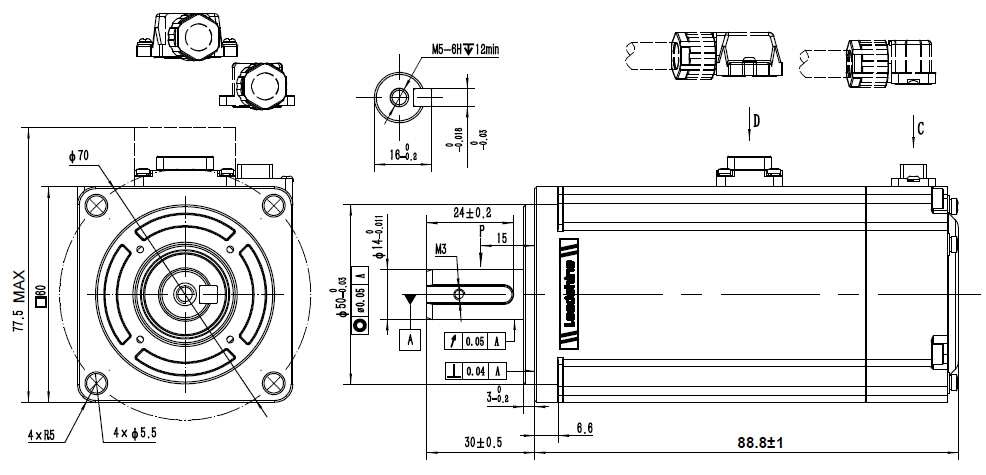

Frame 60mm, rated torque 1.27N•m, rated speed 3000r/min
23-bit magnetic encoder
No brake, direct connector
Strong overload capacity
IP67
The AC servo motors are designed by Leadshine with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.
