Main power voltage: 24-60VDC. Rated voltage: 48VDC
Rated power: 750W. Rated torque: 2.39N.m. Overload: 300%
17 bit incremental magnetic encoder
Pulse+Direction
Modbus RTU over RS485. Build-In 16 PR paths
Dip switch for node ID, baud rate and terminating resistor settings
RS-232 serial interface for easy tuning with Motion Studio

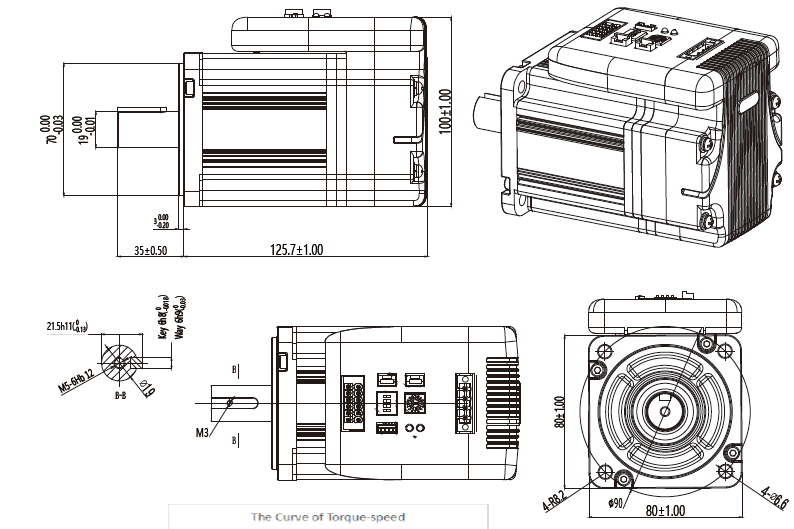

Leadshine iSV2 series includes 60mm & 80mm frame size servomotors which are integrated with 17-bit encoders and servo drives.
Its power ranges from 200 to 750W with peak torque to 7.2 Nm. At very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable connections, reduce interference, and reduce system cost.
