● NEMA17, 0.6N.m
● 14-bit single-turn increment encoder
● Support Modbus RTU protocol, internal 16-segment position commands
● Motion can be started by external I/O or RS485 or HMI
● Support operation modes: profile position, profile velocity, homing

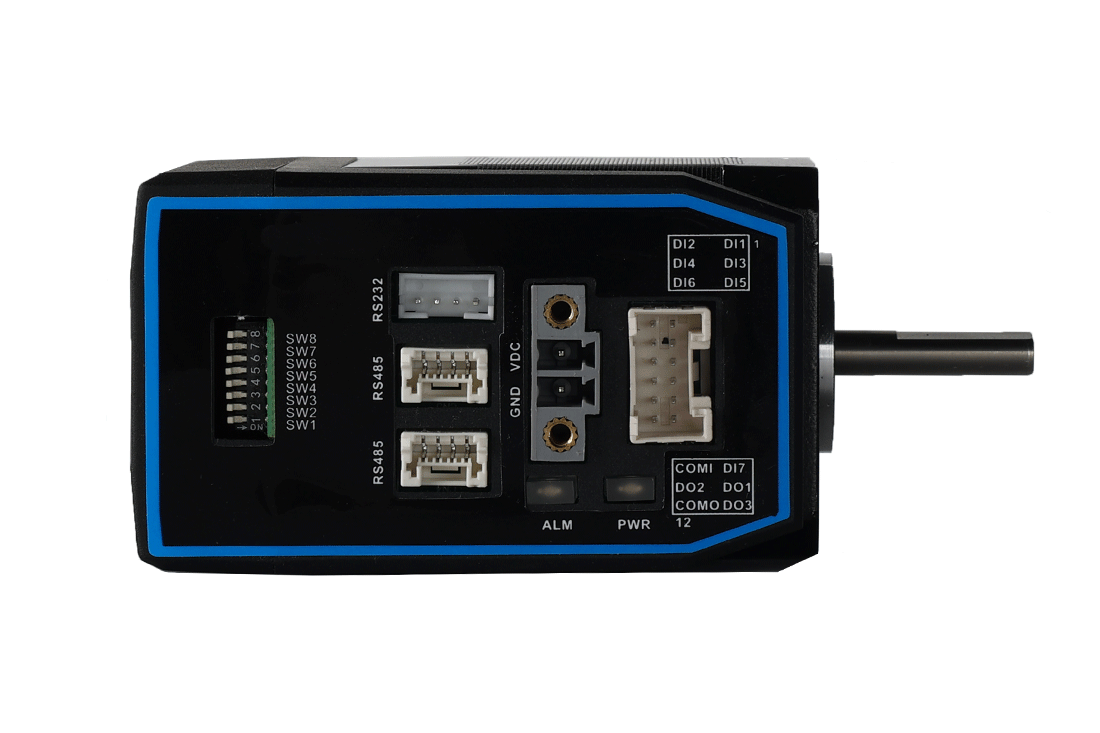

● 7 configurable digital inputs, 3 optically isolated digital outputs
● RS232 port for Leadshine software connection, RS485 port for motion control
● Over voltage, over current, position following error, etc. protections

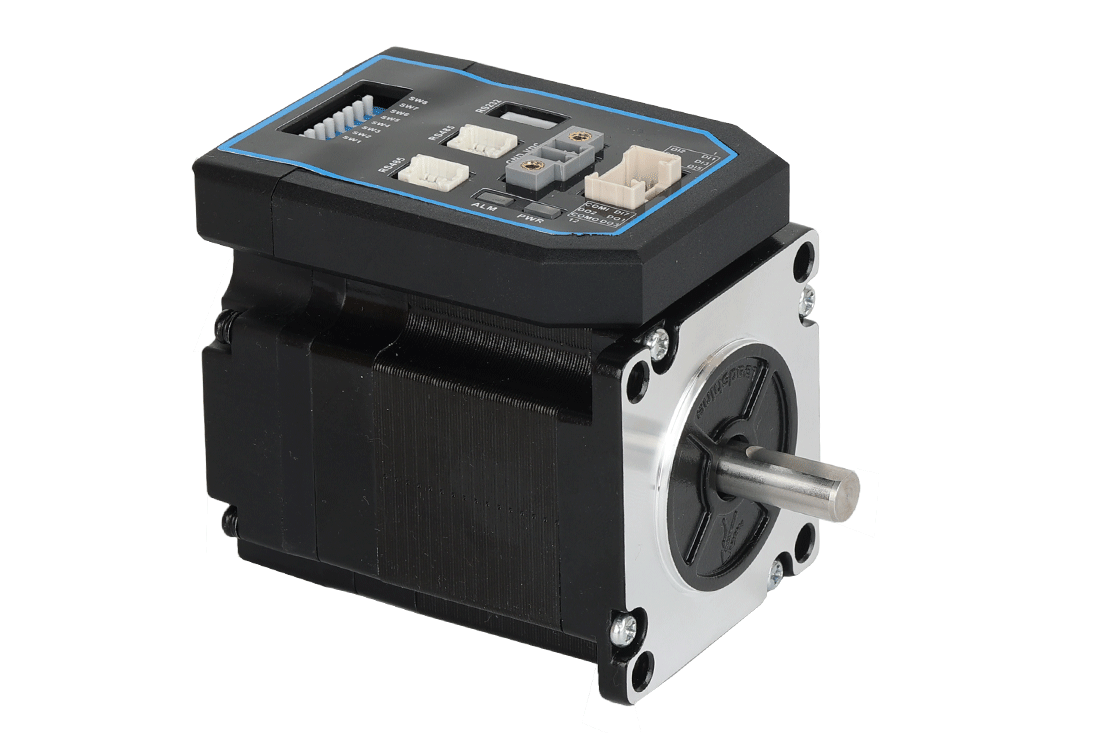

iCS series is integrated closed-loop stepper motor with 14-bit single-turn absolute encoder for smooth and jitter-free motor start-up.
iCS series motors output torque can up to 3.5Nm and supports Modbus RS485 communication with Indexer control function. And with a more compact design, it is especially suitable for applications with strict mounting space requirements, and it is easy to use, which can further reduce customers' procurement and labor costs.
