Servo drive power rating: 7500W
User-configurable I/O: 8 DI, 5 DO, 2 AI and 1 AI
Pulse input: High speed – 4MHz, Low speed – 200kHz (24V), 500kHz(5V)
Equipped with internal regenerative resistor
Position, velocity, torque and hybrid loop control
Servo functions including Zero Tracking Control (ZTC), vibration suppression, friction compensation, 16 configurable PR paths and easy servo tunings
Matching motors with power rating from 50W to 7500W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
EL7-RS Series AC Servo Product is a whole new midrange AC servo drivers and motors product range that we have proudly developed at Leadshine Technology Co.,Ltd. This product series provides more in demanded functionalities and control. While designing this AC servo drive series with cost concerns in mind, this product series doesn’t compromise in term of performance and functions.

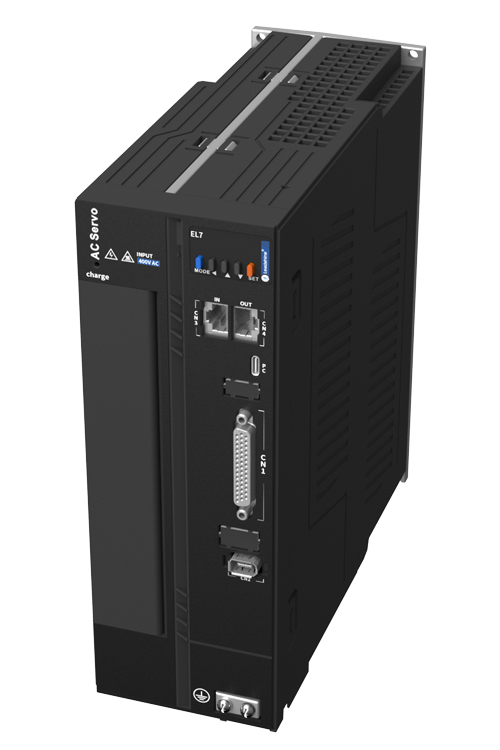

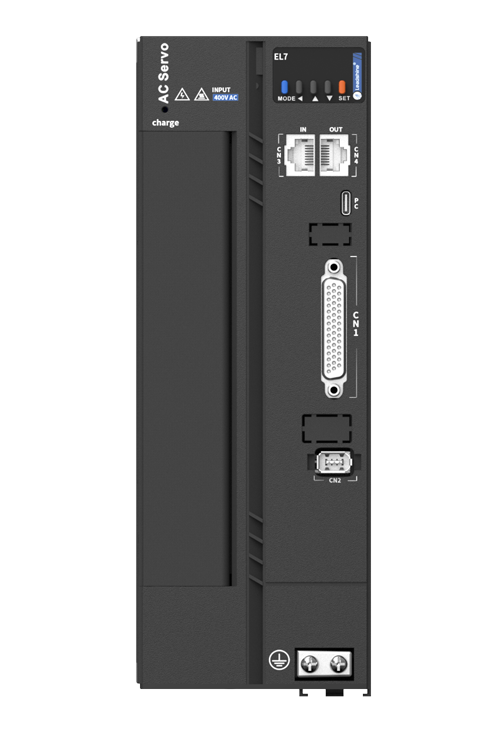

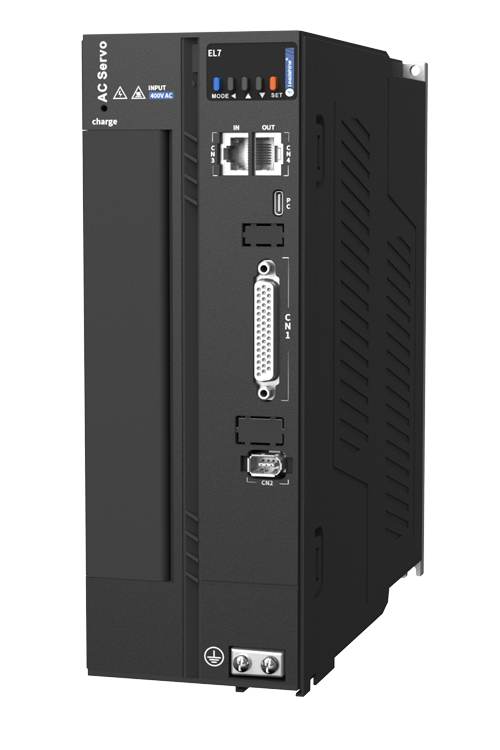

EL7-RS Series AC Servo Drive comes with power rating from 750W up to 7500W which supports Modbus communication protocol in addition to analogue and pulse + direction input control.
EL7-RS series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning), Zero Tracking Control (ZTC), vibration suppression and many more. This AC servo drive series also comes with new AC servo motors with 23-bit optical/magnetic encoder which offers better accuracy and stability.
