Servo drives with power rating from 400W to 1000W
User-configurable I/Os: 8 DI, 3 DO, 2 AI, 2AO and 2 high speed touch probe inputs
Equipped with internal regenerative resistor
Position, velocity and torque loop control
New servo functions including Zero Tracking Control (ZTC), Position comparison, Black box, 1-click/1-parameter easy tunings
Safety functions such as Safe Torque Off (STO) with SIL3 grading
Matching motors with power rating from 50W to 1000W
Motors with 23-bit magnetic/optical encoders
Optional holding brake

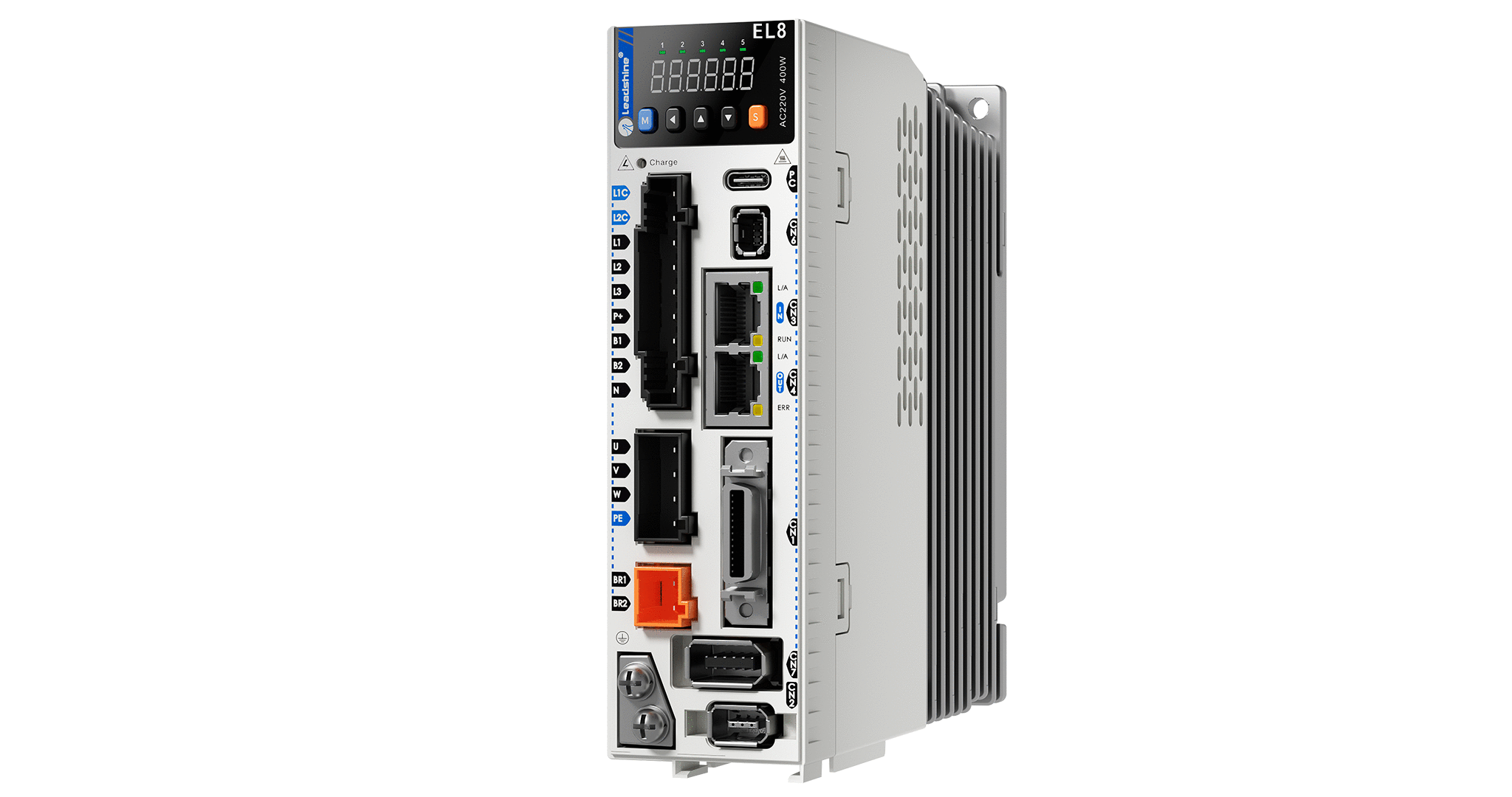

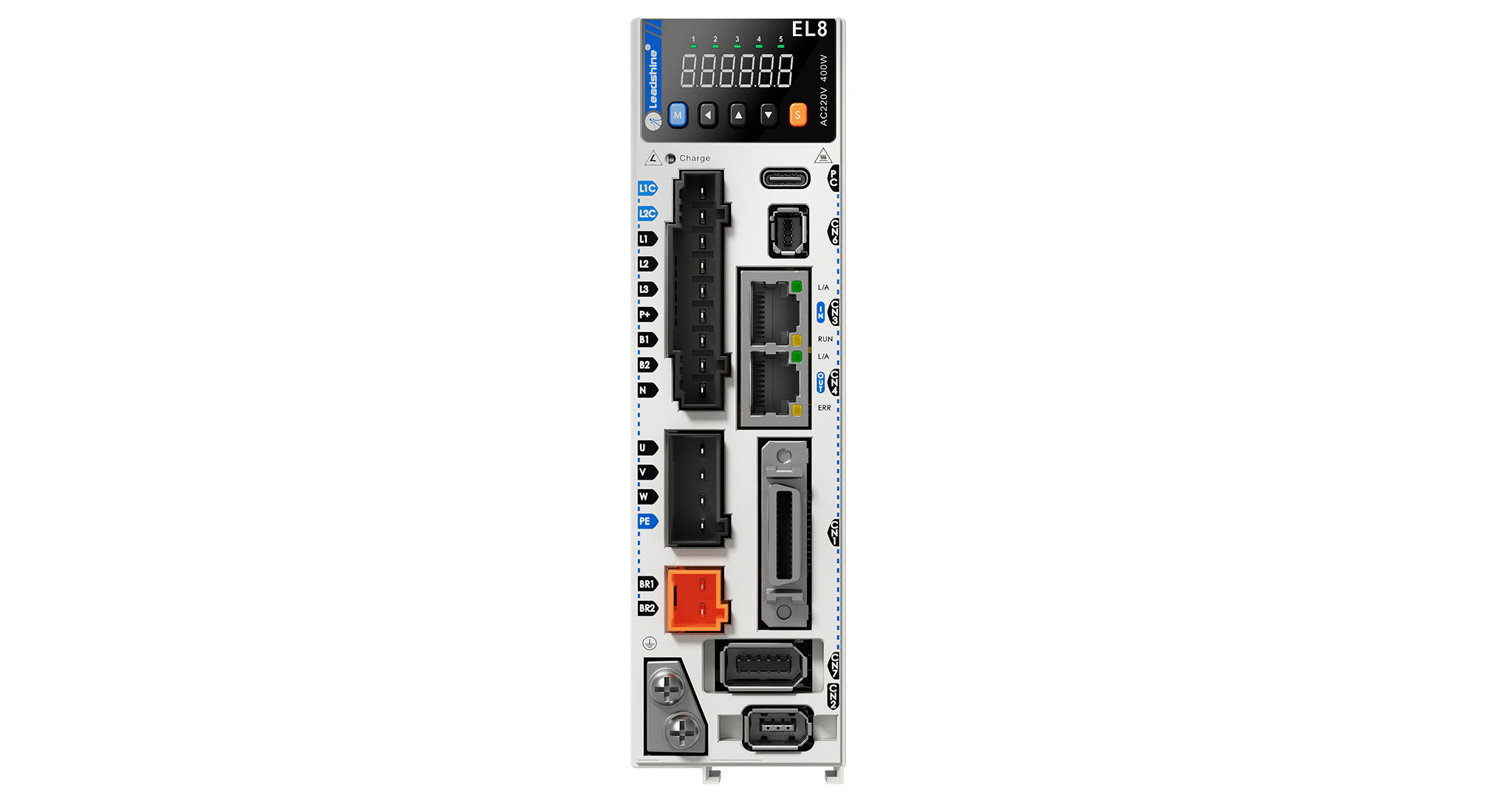

EL8-EC Series AC Servo Product is a whole new high-end AC servo drivers and motors product range that we have proudly developed at Leadshine Technology Co.,Ltd. EL8-EC series AC servo drivers range from power rating of 450W up to 2000W. Our EL8-EC series AC servo drivers supports EtherCAT communication protocol.
Besides our standard servo driver features such as dynamic braking and internal holding brake which comes with internal regenerative resistor, our EL8-EC drivers now also comes with Safe Torque Off (STO) function, Gantry synchronization, Full Closed Loop functionalities and much more.
