Servo drive with power rating from 400W to 2000W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input
Equipped with internal regenerative resistor (For drives above 400W)
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
Matching motors with power rating from 30W to 400W
Motors with 23-bit magnetic/optical encoders
Optional holding brake

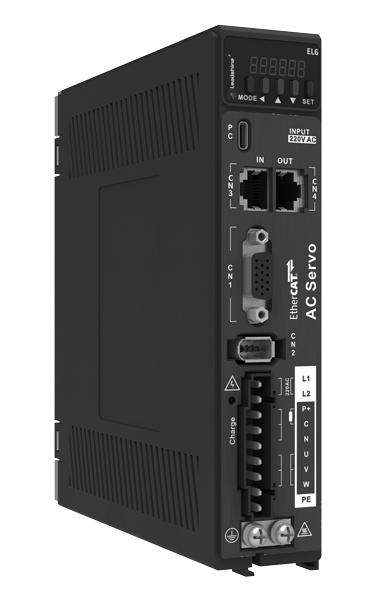

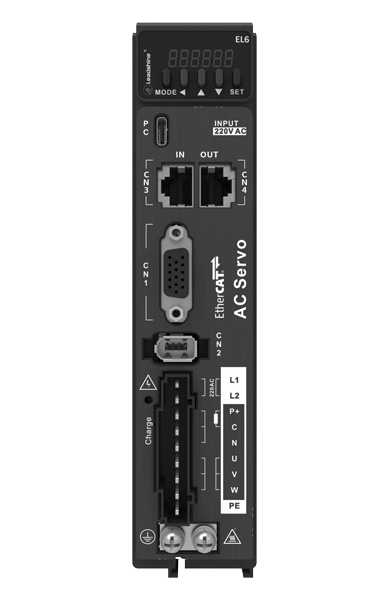

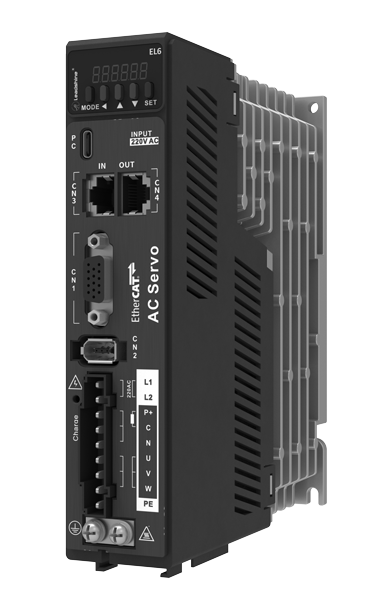

EL6-EC Series AC servo products are high performance AC digital servo which is designed for position/velocity/torque high
accurate control with power rating ranging up to 2kW which provides a perfect solution for different applications with easy
tuning process. Based on the ETG COE + EtherCAT DSP402 protocol, it can be seamlessly connected to controllers/drives that
support this standard protocol.
EL6-EC series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM)
with compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control,
our EL6-EC series products are the one to beat in this product category.
