3 phase
NEMA 23 frame size
2.0 Nm (283 oz-in) holding torque
Speed range: 0 - 3,000 RPM
Integrated 1,000-line incremental encoder
Smooth movement
Low motor heating and noise

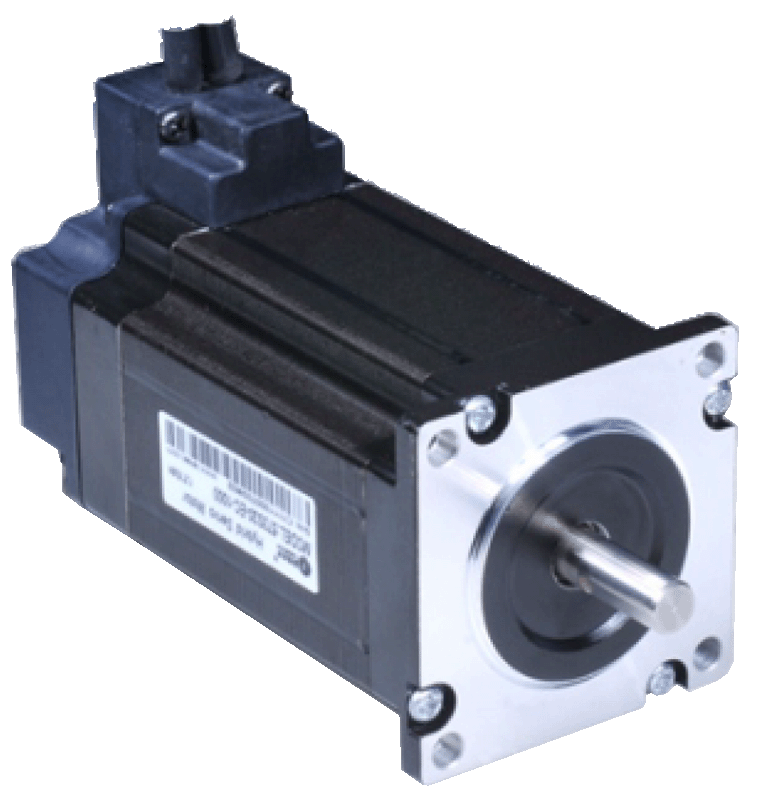

ES-M32320-S is 2.0 Nm (283 oz-in) 3-phase NEMA 23 stepper motor with integrated 1,000-line incremental encoder. It is built with high quality material and can move smoothly with high precision, very low noise & heating.
When driven by Leadshine ES-D508 easy servo drive, the position loop between the motor and drive is fully closed. Therefore, loss of steps which limits adoption of stepper systems is totally eliminated. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%. Such systems are also ideal to replace brushless servo systems to offer huge starting and low speed torques. You can get more information on Leadshine Easy servo Products page.
Leadshine ES-M32320-S easy servo motor can also be driven by regular open loop 3-phase stepper drives, and output encoder signals to motion controllers, or external devices.
